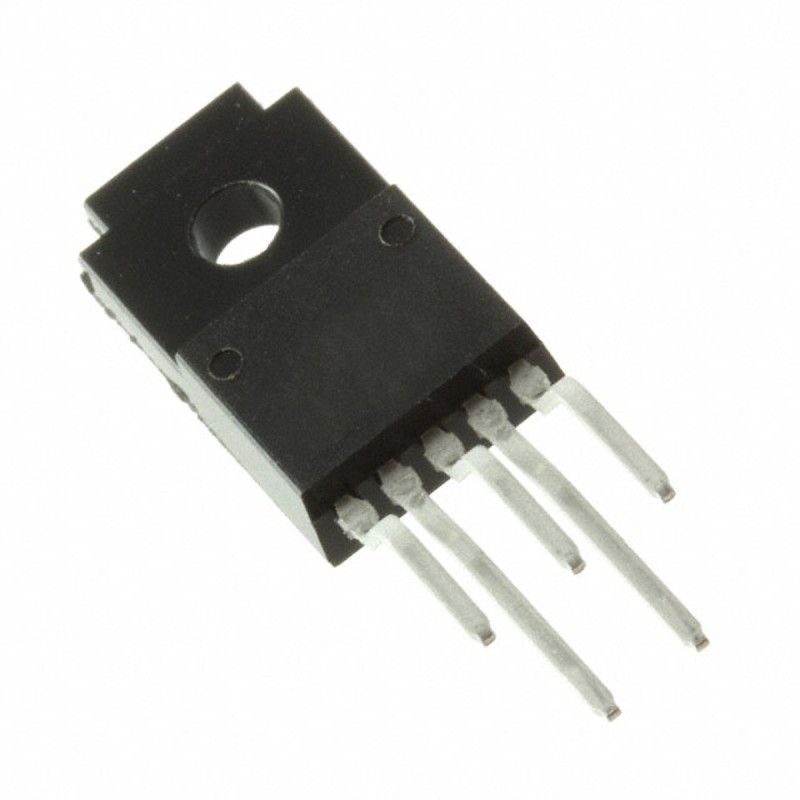

20 pcs - BD9702T-V5 ROHM, BD9702T-V5 Step-Down Switching Regulator, 1-Channel 3A Adjustable 5 + Tab-Pin, TO- 220FP
    • 20 pcs - BD9702T-V5 ROHM, BD9702T-V5 Step-Down Switching Regulator, 1-Channel 3A Adjustable 5 + Tab-Pin, TO- 220FP

    20 pcs - BD9702T-V5 ROHM, BD9702T-V5 Step-Down Switching Regulator, 1-Channel 3A Adjustable 5 + Tab-Pin, TO- 220FP

    20(Allparts)1715479
    ROHM
    20 pcs - BD9702T-V5 ROHM, BD9702T-V5 Step-Down Switching Regulator, 1-Channel 3A Adjustable 5 + Tab-Pin, TO- 220FP
    £61.22
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    BD9702T-V5 is a single-channel step-down switching regulator capable of PWM operation. It has a built-in P-Channel MOSFET making its efficiency high at small loads. It has lower power consumption because it is made under Bi-CMOS process. Its operating current is only 4mA (Typ.) and standby current is 0μA (Typ.).Built-In P-Channel MOSFET for High Efficiency Adjustable Output Voltage Via External Resistors Built-in Over-Current and Thermal Shutdown Circuits ON/OFF Control Via STBY Pin Applications TVs, Printers, DVD Players, Projectors, Gaming Devices, PCs, Car Audio/Navigation Systems, ETCs, Communication Equipment, AV Products, Office Equipment, Industrial Devices, and more.
    Product Details
    ROHM
    20(Allparts)1715479
    BD9702T-V5
    10 Items

    Data sheet

    Manufacturer
    ROHM
    Dimensions
    10 x 4.5 x 17mm
    Width
    4.5mm
    Height
    17mm
    Length
    10mm
    Number of outputs
    1
    Efficiency
    86%
    A-Supplier
    Allparts-UK/15/R-15
    Maximum Operating Temperature
    +85 °C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -40 °C
    Output Type
    Adjustable
    Maximum Input Voltage
    35 V
    Maximum Switching Frequency
    132 kHz
    Maximum Output Current
    3A
    Package Type
    TO- 220FP
    Minimum Input Voltage
    8 V
    Load Regulation
    40 mV
    Maximum Output Voltage
    32 V
    Minimum Output Voltage
    1 V
    Line Regulation
    100 mV
    Regulator Function
    Buck Converter
