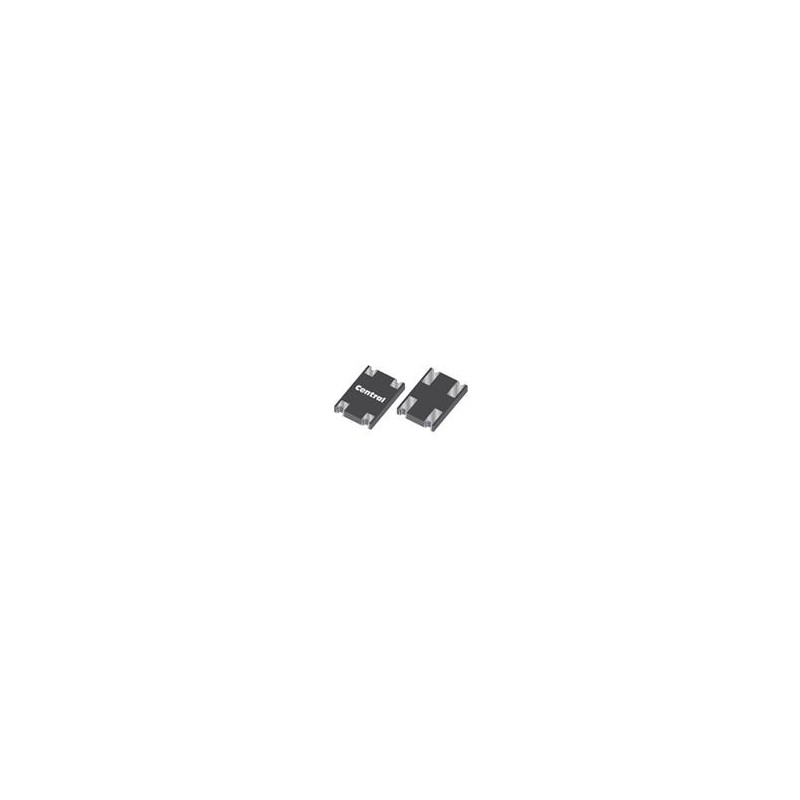

    1 pcs : CBRDFA4-100 TR13 PBFREE - Bridge Rectifiers 4A 1000V Bridge Rectifier DFN-A
    • 1 pcs : CBRDFA4-100 TR13 PBFREE - Bridge Rectifiers 4A 1000V Bridge Rectifier DFN-A

    1 pcs : CBRDFA4-100 TR13 PBFREE - Bridge Rectifiers 4A 1000V Bridge Rectifier DFN-A

    Allparts-UK/M/610-CBRDFA4-100
    £8.72
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    CBRDFA4-100 Full-Wave Bridge Rectifier Central Semiconductor CBRDFA4-100 Full-Wave Bridge Rectifier is mounted on a durable epoxy surface mount case that utilizes the glass passivated chips. This rectifier features a high 4A current rating and low forward voltage (VF) diodes (1A maximum at 4A IF). The CBRDFA4-100 rectifier offers 1000V peak repetitive reverse voltage (VRRM), 1000V DC blocking voltage (VR), and 150A peak forward surge current (IFSM). This rectifier is available in a BR DFN-A case.
    Product Details
    Central Semiconductor
    Allparts-UK/M/610-CBRDFA4-100
    CBRDFA4-100 TR13 PBFREE
    10 Items

    Data sheet

    Manufacturer
    Central Semiconductor
    Width
    8.2 mm
    Height
    1.55 mm
    Length
    10.6 mm
    Series
    CBRDF
    Maximum Operating Temperature
    + 175 C
    Minimum Operating Temperature
    - 55 C
    Mounting Style
    SMD/SMT
    Type
    Single Phase Bridge
    Product Type
    Bridge Rectifiers
    Package/Case
    DFN-A-4
    Product Category
    Bridge Rectifiers
    Packaging
    Cut Tape
    RoHS
    Details
    Brand
    Central Semiconductor
    Factory Pack Quantity Factory Pack Quantity
    3000
    Subcategory
    Diodes & Rectifiers
    Vr - Reverse Voltage
    1 kV
    If - Forward Current
    4 A
    Vf - Forward Voltage
    950 mV
    Max Surge Current
    150 A
    Ir - Reverse Current
    5 uA
