Retrofitting with pneumatics, mineral oil kit

Retrofitting an agricultural tractor with pneumatics - a set for mineral oil without a compressor MIZAR number: 66773

Universal set for retrofitting agricultural tractors with a pneumatic system. Very often, used Western tractors lack a trailer brake control system, or it is a hydraulic system . It also happens that the pneumatic system is so devastated that, apart from the compressor, the rest of the installation does not exist or is unusable. The solution to the problem of the lack of a pneumatic system in the tractor is the set we offer.

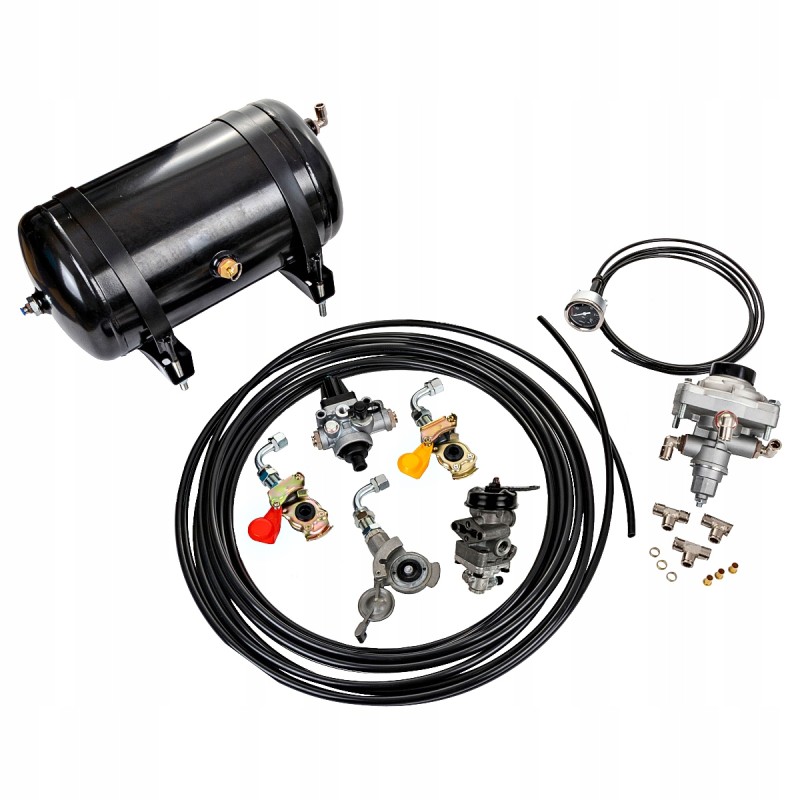

The set includes the following elements:

- pressure regulator with a built-in measurement connector

- 20L air tank with mounting clamps

- hydraulic-pneumatic control valve

- pneumatic control valve

- quick connectors for single- and double-line systems

- Tekalan cable - 18m

- set of necessary connectors and seals

ATTENTION!!!

The offered accessories are dedicated to vehicles in which the medium The working fluid in the tractor's braking system is mineral oil. It cannot be used in machines with brakes controlled by DOT4 fluid, for such machines we recommend the set number Mizar 66772.

Due to the different designs of machines in which it can be used, the set does not include elements such as brackets assembly. These elements should be selected or made on your own, depending on your needs.

The set includes assembly instructions and a connection diagram.

⛏️ Self-assembly kit according to the attached instructions ⛏️MIZAR number: 66773
