Tekalan compression connector fi 12 GW M18x1.5 MIZAR number: 36789

Tekalan compression connector fi 12 GW M18x1.5

Tekalan compression connector ø12. To connect the Tekalan cable with the elbows of the quick connectors, it must be properly "formed". This involves putting a clamping ring on its end and inserting a plug sleeve into the end of the cable. It is worth remembering to put the M18x1.5 clamping nut on the cable first. Detailing and the finished cable end are presented below.

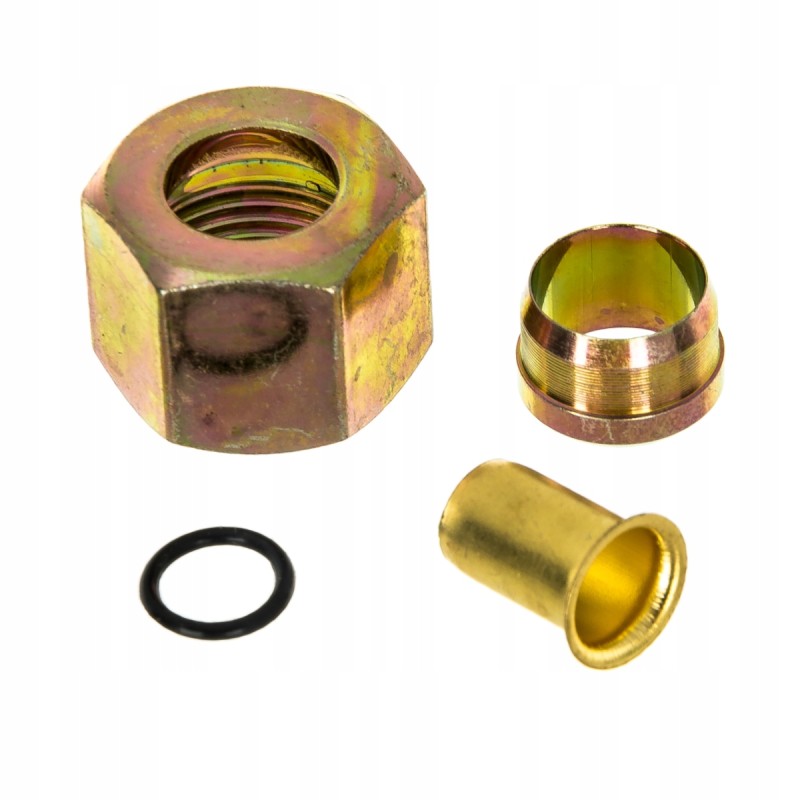

The set includes:

M18x1.5 nut

clamping ring

plug-in sleeve< p>

The tekalan cable is included in the photo for illustrative purposes only and is not included in the set.

Attention!!! Tighten the nut carefully and carefully, because once the ring has been tightened, it cannot be removed without damaging it.
