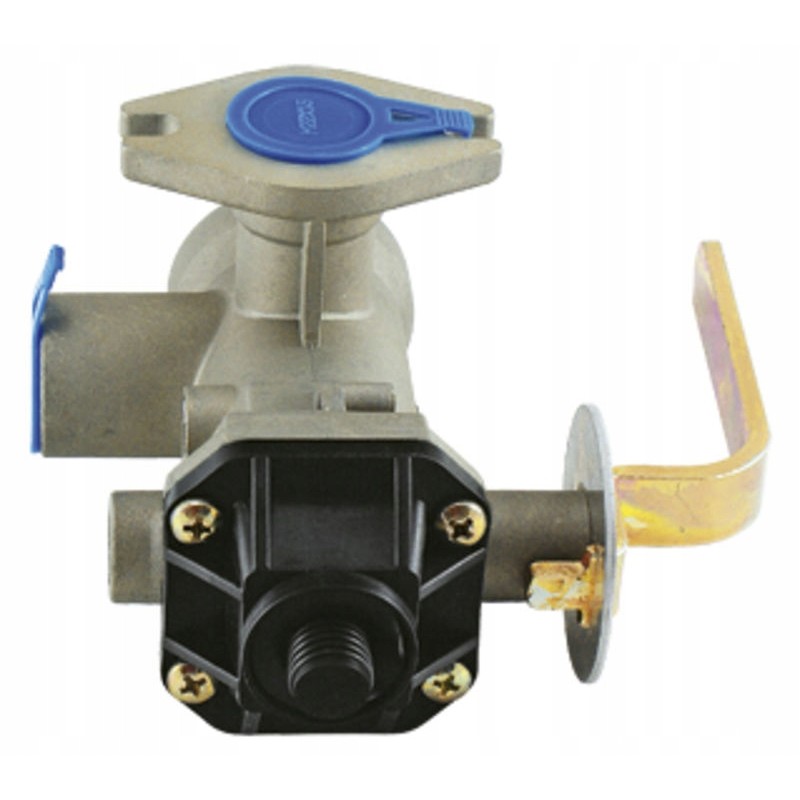

Braking force regulator d 35 d 47 d 50 4-range

Braking force regulator 4-range comparative numbers:

VISTEON - 61110100, WABCO- 4756040100, 4756040107, 4756040110, 4756040117, 4756040120, 4756040127, 4756040130, 4 756040150, 4756040170, 4756040190, 4756040410, 4756040417, 4756040430, 4756040500, 4756040507,

GRAU - 352011101, 352011102 , 352011121, 352011122, KNORR - BR1100, BR1300,

HALDEX - 352011101, 352011102, 352011121, 352011122, WABCO – 4756040100, COJALI – 2225100, 245 715010,

HALDEX – 352011101, 210001041, 352008001, 352011001, DAF – 0719701, 700124, DAIMLER - B950826401201,

EVOBUS – 8283601000, FREUHAUF - CF3501917, OLDHOFER – 200206, IVECO – 01271399, KASSBOHRER – 82834590000,

MAN – 81521616174, 8152161917 4, VAN HOOL – 637203620,

Setting range without load [bar] – empty - 0.8 –2.2,

Setting range 1/2 load [bar] – 2.8-3.7,

Setting range full load [bar] – pressure in the tank,

Pneumatic connection thread – M22x1.5, Mounting hole spacing [ mm] - 55,

*

no.00309
