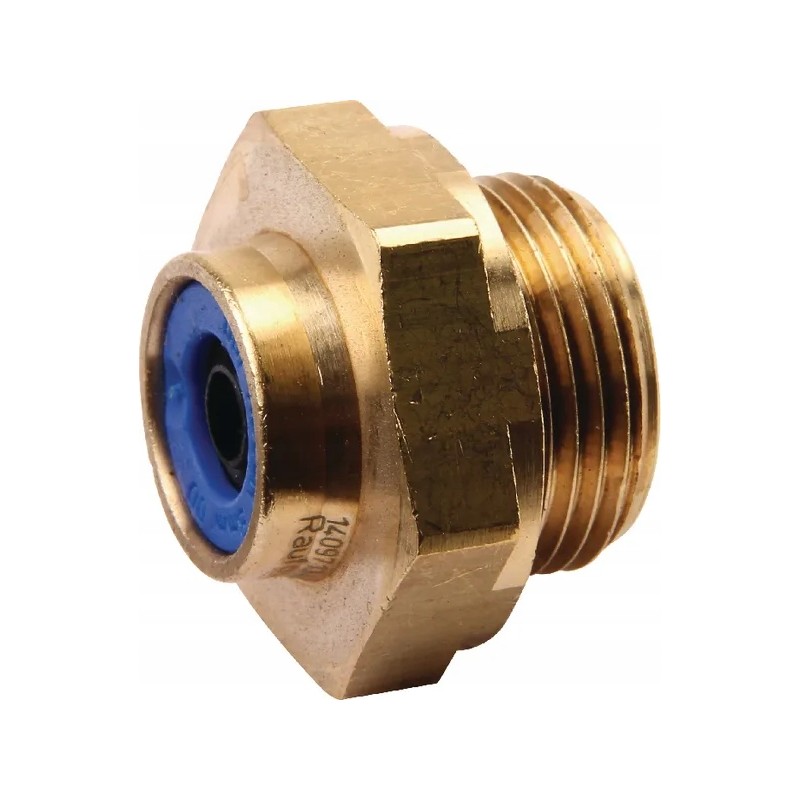

Plug-in connector

Snap-on connector

Part number: K. 8938000052

EAN: 4057875256915

Unit: Art

Specifications: Developed based on the most commonly used connections Application:

WIRA plug connectors are used to connect plastic pipes to brake systems and additional consumers of commercial vehicles

For plastic pipes in accordance with DIN 73378, DIN74324, SAE J 844 and J 1394

Benefits:

No tools are required for the installation of plastic pipes

The pipe is simply inserted into the plug connector and the connection is ready

The connections are immediately and permanently tight.

Shape: Straight - 2 sides of the connection Connector type no. 1: Thread

Connector type no. 1 - male/female: Male

Connector No. 1 thread diameter: M22

Connector No. 1 thread pitch: 1.50mm

Connector Thread Type: Metric

Wrench size for connector #1: 28.0mm

Connector type no. 2: Thread

Thread diameter of connection no. 2: M22

Connector No. 2 thread pitch: 1.50mm

Connection thread type no. 2: Metric

Inner diameter: 8mm

Length: 13mm
