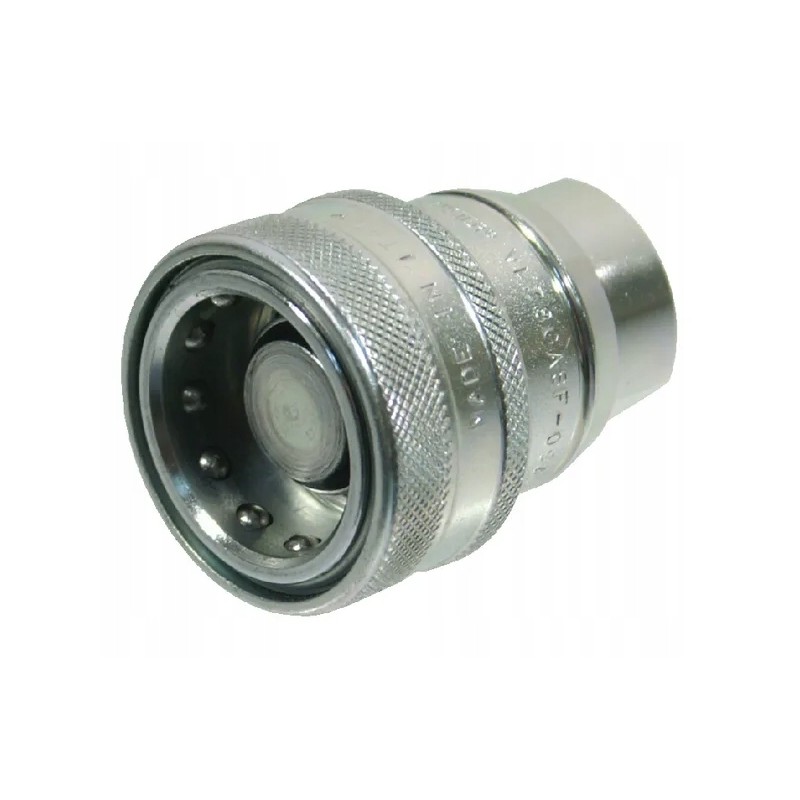

Flat quick connector for the braking system, vf socket

Flat quick connector for the VF brake system, 3/8' socket, 1/2' internal thread BSP

Part number: K. VF012GASF

EAN:

Unit: Art

Advantages: Low leakage rate Product details:

No air pockets during coupling

Cannot be connected under pressure

The connector must be screwed on until it stops

Screwed connector with a special flat valve

Shape: Straight - 2 sides of the connection Size: 3/8 inch

Size: 10mm

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Female

Connection diameter: 44mm

THREADConnector thread diameter: 1/2 inch

Connector thread type: BSP

Connector thread type no. 1 - code: 0

Connector #1 Key Size: 1.06 inch

HEX.1Connector #1 key size: 27mm

Connector type no. 2: Thread

Connector type no. 2 - male/female: Female

Thread diameter of connection no. 2: 1/2 inch Number of threads per inch of thread of connector No. 2: 14

Connection thread type no. 2: BSPP

Possibility of connection under pressure: No

ISO standard: 5676

BS standard: 5380

Flow at 2 bar pressure: 40l/min Outside diameter: 1.73 inch

Outer diameter: 44mm

L1 Total Length: 2.32 inch

L1Total length: 54.5mm

Material: Steel

Surface treatment: White passivated Working pressure: 150BAR Operating temperature max.: 125°C

Operating temperature min.: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Sleeve offset

Disconnection method: Shifting the sleeve Seal material:

Nitrile rubber [NBR]

Teflon (PTFE)

Series: VF

Valve type: Flat

Weight: 379.7g

The product fits machines:

McCormick Series C C100, C50, C60, C70, C80, C90

Series CX CX 100, CX 50, CX 60, CX 70, CX 80, CX 90

Series MC MC 100, MC 80, MC 90

Renault Series Arès Ares 540 RX, Ares 540 RX, Ares 546 RX, Ares 546 RX, Ares 550 RX, Ares 550 RX, Ares 556 RX, Ares 556 RX, Ares 610 RX/RZ, Ares 610 RX/RZ, Ares 616 RZ , Ares 616 RZ, Ares 620 RX/RZ, Ares 620 RX/RZ, Ares 626, Ares 626, Ares 630 RX/RZ, Ares 630 RX/RZ, Ares 636, Ares 636, Ares 640 RZ, Ares 640 RZ, Ares 656 RZ, Ares 656 RZ, Ares 696 RZ, Ares 696 RZ, Ares 710 RZ, Ares 710 RZ, Ares 715, Ares 715, Ares 720 RZ, Ares 720 RZ, Ares 725 RZ, Ares 725 RZ, Ares 735 RZ, Ares 735 RZ, Ares 815 RZ, Ares 815 RZ, Ares 816 RZ, Ares 816 RZ, Ares 825 RZ, Ares 825 RZ, Ares 826 RZ, Ares 826 RZ, Ares 540 RX, Ares 546 RX, Ares 550 RX, Ares 556 RX , Ares 610 RX/RZ, Ares 616 RZ, Ares 620 RX/RZ, Ares 626, Ares 630 RX/RZ, Ares 636, Ares 640 RZ, Ares 656 RZ, Ares 696 RZ, Ares 710 RZ, Ares 715, Ares 720 RZ, Ares 725 RZ, Ares 735 RZ, Ares 815 RZ, Ares 816 RZ, Ares 825 RZ, Ares 826 RZ

Series Atlès Atles 926 RZ, Atles 936 RZ
