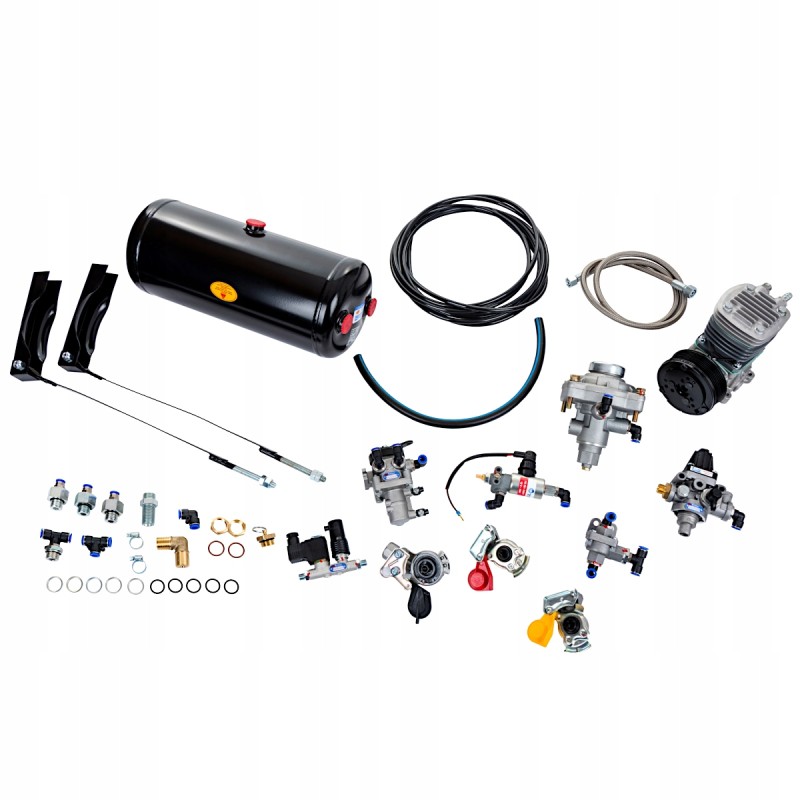

Filkar tractor air brake set

Pneumatic brake set for a Filkar agricultural tractor MIZAR number: 64430

Pneumatic set for an agricultural tractor A universal pneumatic set for agricultural tractors manufactured by the renowned Filkar company. Due to the high quality resulting from the manufacturer's attention to detail, the products of this Turkish company are delivered to the first assembly lines, among others. in new Ursus tractors.

The offered set is widely used in tractors of various brands existing on the market, but can also be installed in other machines, e.g. telehandlers, skidding tractors, etc.

Main elements of the set:

- Compressor - which is the heart of the system, has an 8PK pulley with an electromagnetic clutch, so you can conveniently control its operation depending on your needs

- Pressure regulator - is responsible for maintaining the appropriate pressure in the system, i.e. 8.1 bar, thus protecting other elements against damage due to too high pressure.

- Main control valve - acts as a link between the tractor's braking system and the pneumatic system. The offered set includes a valve intended for tractors whose braking system runs on mineral oil. If the tractor has a braking system operating on brake fluids (DOT), you should purchase a set of seals (Mizar number 53026) intended for this medium and replace them in the control valve.

- Pneumatic control valve, the so-called 'cabbage' - is responsible for dividing the braking signal into single- and double-wire quick connectors in accordance with their functionality

- Lubrication pressure valve - is responsible for controlling the correct compressor lubrication pressure from the tractor's oil system. In case of too low pressure (below 1.5 bar), the compressor pulley is disconnected, thus protecting the compressor against seizing.

- Handbrake solenoid valve - an alternative way of activating the handbrake in case of mechanical connection of the handbrake with the main valve is not possible.

- Handbrake non-return valve - allows you to control the handbrake through the main and solenoid valves, without the risk of pressure 'returning' to one of them when the other one is activated.

- Air tank with mountings - tank capacity is 15l

- set of quick connectors, cables and necessary connectors and seals

Please make sure that your version of the tractor is the control medium brakes have mineral oil.

MIZAR number: 64430
