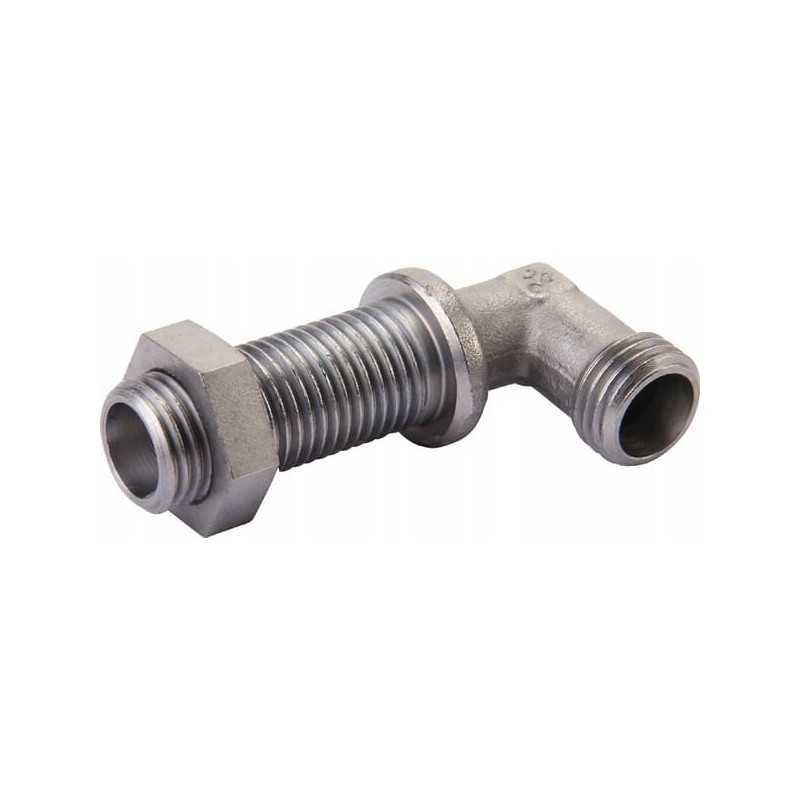

Angle bulkhead connector 15l wss15l voss

Angle bulkhead connector 15L Parameters

Part number: WSS15L

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Elbow - 2 sides of the connection

Connector type - male/female: Male

Connector thread diameter: M22

Connector no. 1 thread pitch: 1.5mm

Connector Wrench Size: 19mm

Connector No. 2 Male/Female Type: Male

Connector No. 2 Thread Diameter: M22

Connector No. 2 Thread Pitch: 1.5mm

Connector No. 2 Thread Type: Metric

Wrench size for connector no. 2 [S2]: 19 mm

Pipe diameter: 15 mm

Internal diameter: 15 mm

Body height: 30 mm

Angle: 90 °

Working pressure max.: 315 BAR

Series: L

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version Dimension from the axis of the joint to the end of the next joint - 21 mm

- 61 mm

DIN standard

- 2353

- 80750

- 2401

Surface treatment

- Zinc

- Nickel plated
