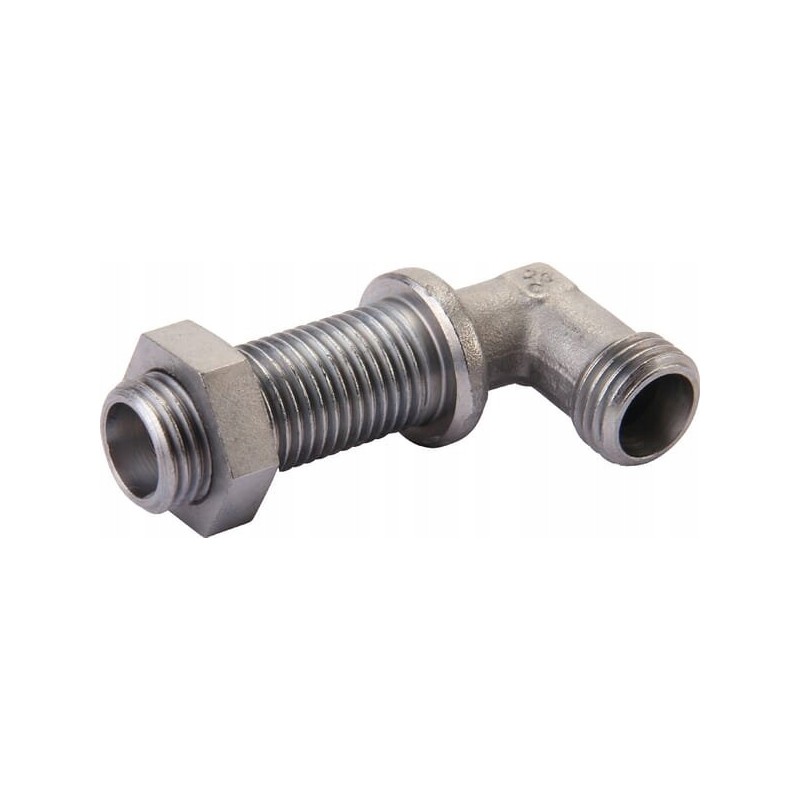

Angle bulkhead connector 16s wss16s voss

Angle bulkhead connector 16S Parameters

Part number: WSS16S

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Elbow - 2 sides of the connection

Connector type - male/female: Male

Connector thread diameter: M24

Connector no. 1 thread pitch: 1.5mm

Connector Wrench Size: 24mm

Connector No. 2 Male/Female Type: Male

Connector No. 2 Thread Diameter: M24

Connector No. 2 Thread Pitch: 1.5mm

Connector No. 2 Thread Type: Metric

Wrench size for connector no. 2 [S2]: 24 mm

Pipe diameter: 16 mm

Internal diameter: 16 mm

Body height: 32 mm

Angle: 90 °

Max. working pressure: 400 BAR

Series: S

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version Dimension from the axis of the joint to the end of the next joint - 24.5 mm

- 64 mm

DIN standard

- 2353

- 80750

- 2401

Surface treatment

- Zinc

- Nickel plated
