Description

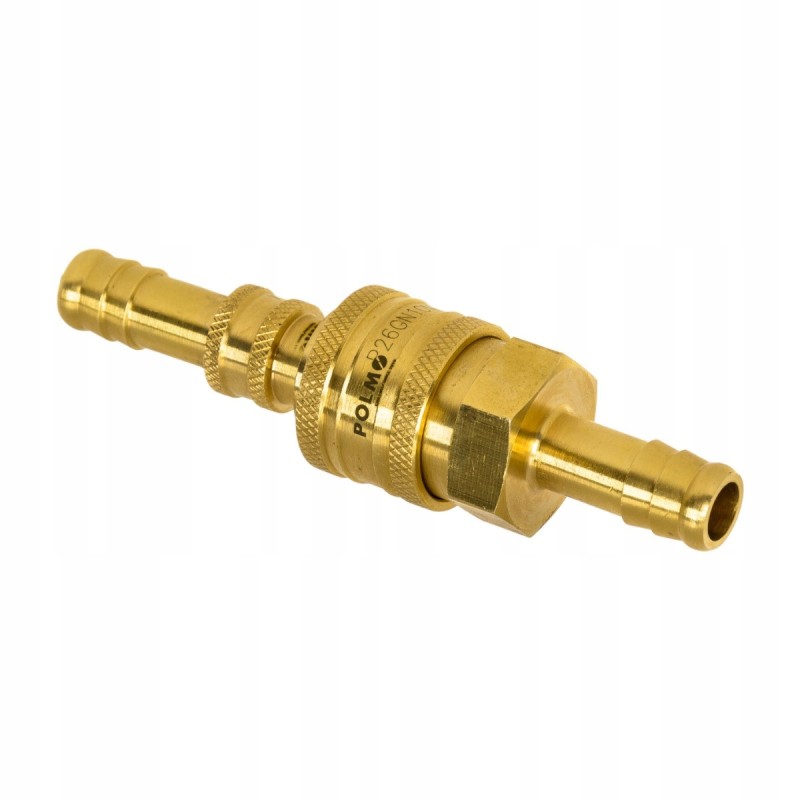

Pneumatic quick connector set plug + socket for 10mm Polmo hose MIZAR number: 72039

Pneumatic quick connector set. plug + socket for a 10mm Polmo hose* Quick connectors are designed in accordance with the dimensional and quality requirements consistent with the standard EURO profile, which specifies in detail the characteristics and dimensions.

* POLMO quick connectors solve the problem of quick connection and disconnection of pneumatic conduits.< p>

* The spring mechanism makes it easy to connect the plug to the socket with one hand.

Plug + socket set

Polish product

On 10mm hose

Interchangeable with P26 series quick connectors from: RECTUS, CEJN and others.

Technical information:

Operating temperature: -20 to +100˚ C

Maximum working pressure: 3.5MPa / 35bar

Series: P26, 7.2

Hose connector: 10mm

Material: Brass

Type: socket + plug

Manufacturer: Polmo

Application:

Compressors

Agricultural machinery< p>

Industrial machines

MIZAR number: 72039

Product Details
Polmo
15013916561972
P26GN10MMP
5 Items
New

Data sheet

Manufacturer
Polmo
Part Number
P26GN10MMP
Product weight with unit packaging
0.08 kg
