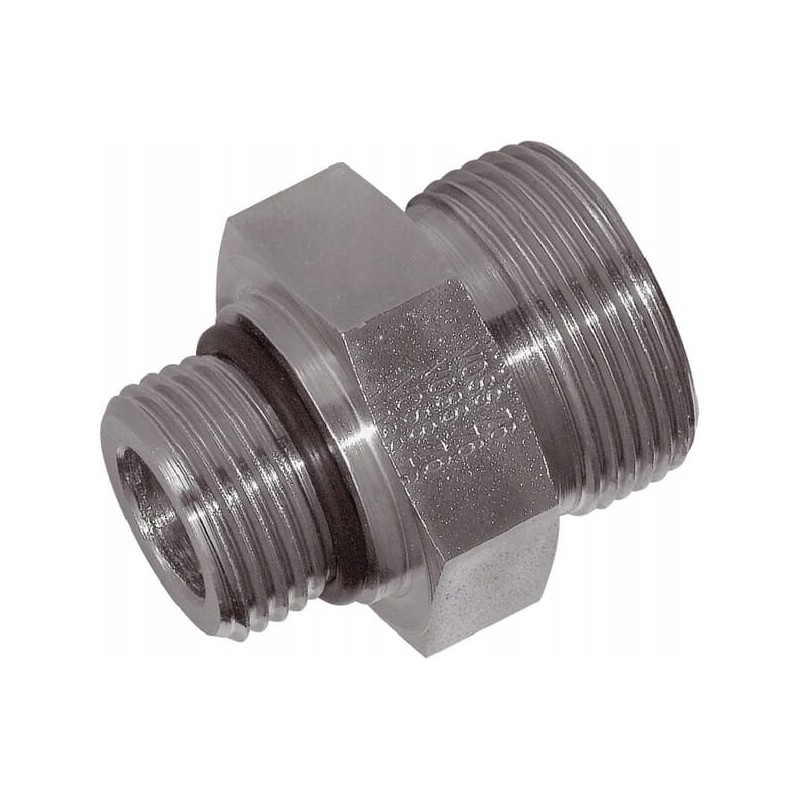

Threaded connection 15l 7 8 unf

15L 7/8 UNF Threaded Connector Parameters

Part number: GES15L78UNF

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connector diameter No. 1: 15 mm

Thread diameter of connector No. 1: 7/8 inch

Thread length of connector No. 1 [K]: 12.8 mm

Internal diameter: 11 mm

Working pressure max.: 400 BAR

Thread pitch of connector No. 1: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: L

Tightening torque max.: 60 N m

Wrench size for connector no. 1: 27 mm

Wrench size for connector no. 1 [S1]: 27 mm

Connector No. 1 thread type: UNF

Connector No. 2 type: Sealing ring

Connector No. 2 male/female type: Male

Connector No. 2 thread diameter: 7/8 inch

Number of threads per inch of connector No. 2 thread: 14

Connector No. 2 Thread Type: UNF

Connector No. 2 Wrench Size [S2]: 27 mm

Pipe Diameter: 15 mm

SAE Standard: 514

Length: 33.7 mm

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Surface treatment

- Zinc

- Nickel plated

Dimension from the axis of the joint to the end of the next joint [L2]

29mm

Dimension from the axis of joint no. 2 to the end of the next joint [L1]

14mm

DIN standard

- 2353

- 3852

- 2401
