Check valve in vu34gw 3 4 warynski bsp

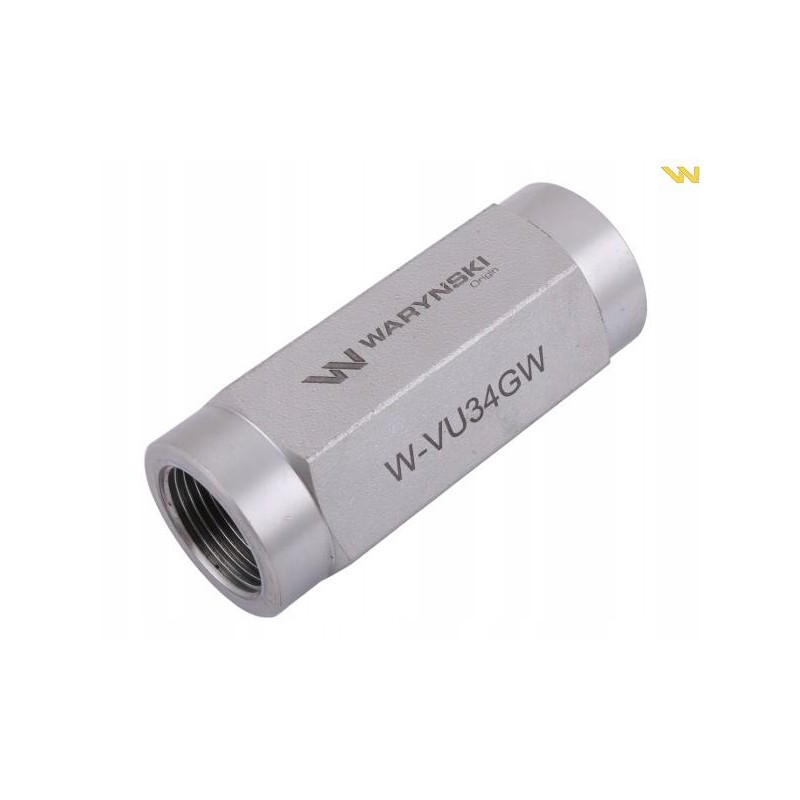

W-VU34GW 3/4'BSP Waryński check valveThe W-VU34GW 3/4'BSP Waryński check valve allows for free flow in one direction and closing the flow in the opposite direction. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions in agricultural and construction machines.

Application:

Waryński check valves are used in agricultural and industrial machines. They allow free flow in one direction and closing the flow in the opposite direction.

Specification:

Collective packaging: 1 piece

Thread: Internal 3/4'

Max working pressure: 50.0 Mpa / 500 bar

Type: Check valve

Cone - thread: BSP

Max. flow: 100 L/min

Material: Steel

Opening pressure: 0.4 - 0.5 bar
