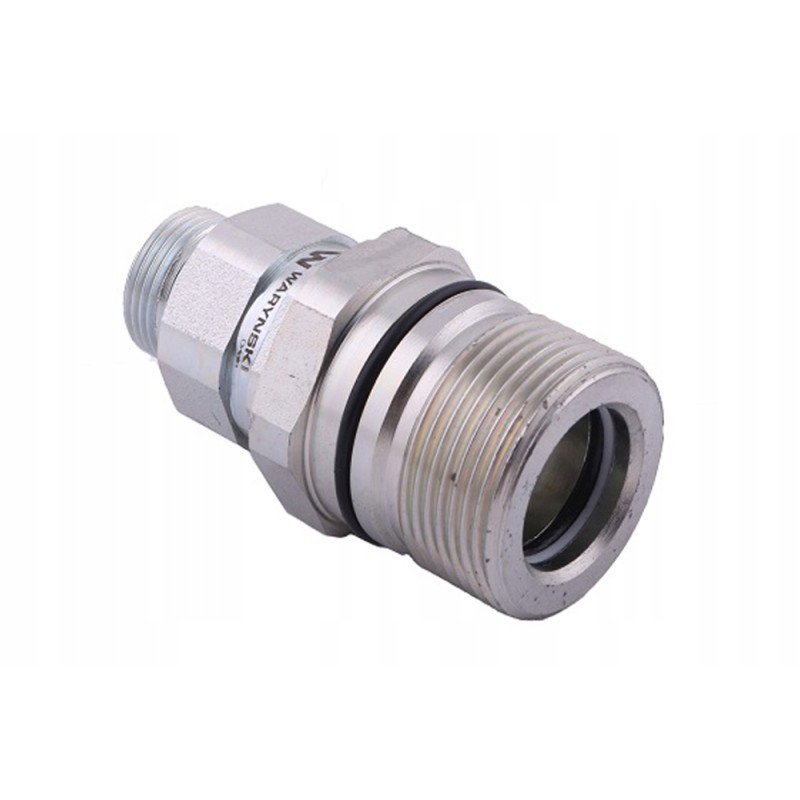

Hydraulic quick connector, screw-on socket M22x1 5

SCREWED HYDRAULIC SOCKET CONNECTOR M22X1.5 EXTERNAL THREAD 300BAR WARYŃSKIHYDRAULIC QUICK CONNECTOR SCREWED SOCKET M22X1.5 EXTERNAL THREAD 300BAR WARYŃSKI

Hydraulic quick connector, screwed socket, M22x1.5, external thread 300bar Waryński. They are designed in accordance with dimensional requirements and quality, which define in detail the characteristics of the work and dimensions. They have an additional seal to prevent unscrewing quick couplings in case of vibrations during operation in the hydraulic system.

They are widely used in construction, industry and agriculture.

*Specification:

*Operating temperature - from -20°C to +100°C

*Thread - External M22x1.5

*Max working pressure - 30.0 Mpa / 300 bar

*Type - Nest

*Cone - thread - 15L (15mm)

*Fits plugs - WDCVV18SZ, WDCVV22SZ, WDCVV12SW

*Group - Quick connectors

-️Application:

WDCVV series screwed hydraulic quick connectors are generally used in industrial construction and agricultural machines. They are compatible with other quick connectors from renowned power hydraulics manufacturers., WDCVV18SZ, WDCVV22SZ, WDCVV12SW

*Producer: Waryński
