Retrofitting an agricultural tractor with pneumatics - a set for DOT fluid without a compressor MIZAR number: 66772

Universal set for retrofitting agricultural tractors with a pneumatic system. Very often, used Western tractors lack a trailer brake control system, or it is a hydraulic system . It also happens that the pneumatic system is so devastated that, apart from the compressor, the rest of the installation does not exist or is unusable. The solution to the problem of the lack of a pneumatic system in the tractor is the set we offer.

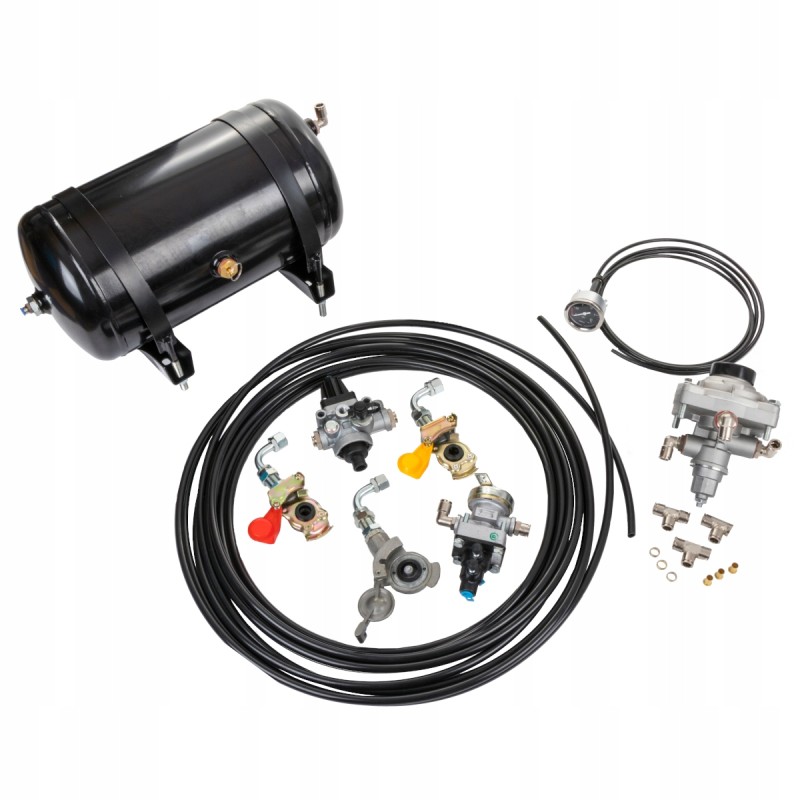

The set includes the following elements:

- pressure regulator with a built-in measurement connector

- 20L air tank with mounting clamps

- hydraulic-pneumatic control valve

- pneumatic control valve

- quick connectors for single- and double-line systems

- Tekalan cable diameter 12 - 18m

- set of necessary connectors and seals

The offered accessories are dedicated to vehicles in which the working medium in the tractor's braking system is DOT4 fluid. It cannot be used in machines in which the brakes are controlled by mineral oil, for such machines we recommend the set number Mizar 66773.

Due to the various designs of machines in which it can be used, the set does not contain such elements as mounting brackets. These elements should be selected or made on your own, depending on your needs.

The set includes concise assembly instructions and a connection diagram.

⛏️ Self-assembly kit according to the attached instructions ⛏️MIZAR number: 66772
