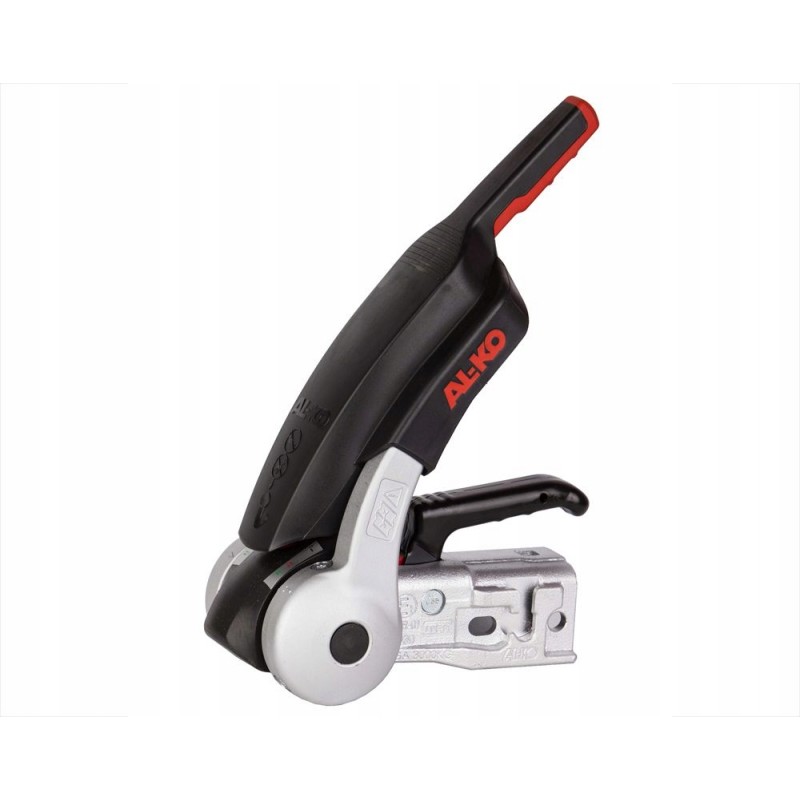

Ball hitch stabilizer AKS3004 fi 35 50 alco

The set includes: Ball hitch with stabilizer

AKS™ 3004

LATEST ITEMS

effectively eliminates side tilts and swaying of trailers with a total weight of up to 3,000 kg. In an emergency situation, it is easier to bring the trailer to a safe condition. Driving is calm and safe.

Characteristics:

What profile will the hitch be mounted on: round

Diameter of the pipe on which the hitch will be mounted: ϕ 35, ϕ 40, ϕ 45, ϕ 50

Strength of the hitch: 3000kg

Mounting method (hole arrangement): side-side, top-side

Spacing of mounting screws (distance between the centers of holes): 50mm, 51mm, 52mm, 53mm, 54mm

Diameter of holes for mounting screws: ϕ 13 (M12 screw/19mm wrench)

Does it have a hitch wear indicator: YES

Maximum vertical pressure on the hook ball: 200kg

Does it have a plug holder: NO

The set includes: rubber bellows - 1 piece

M12 screws - 3 pieces

hitch reduction for a 35 mm pipe - 1 piece

reduction of the hitch for a 45 mm pipe - 1 piece

ball hitch (parameters indicated in the description) - 1 piece

model - NH-A160
