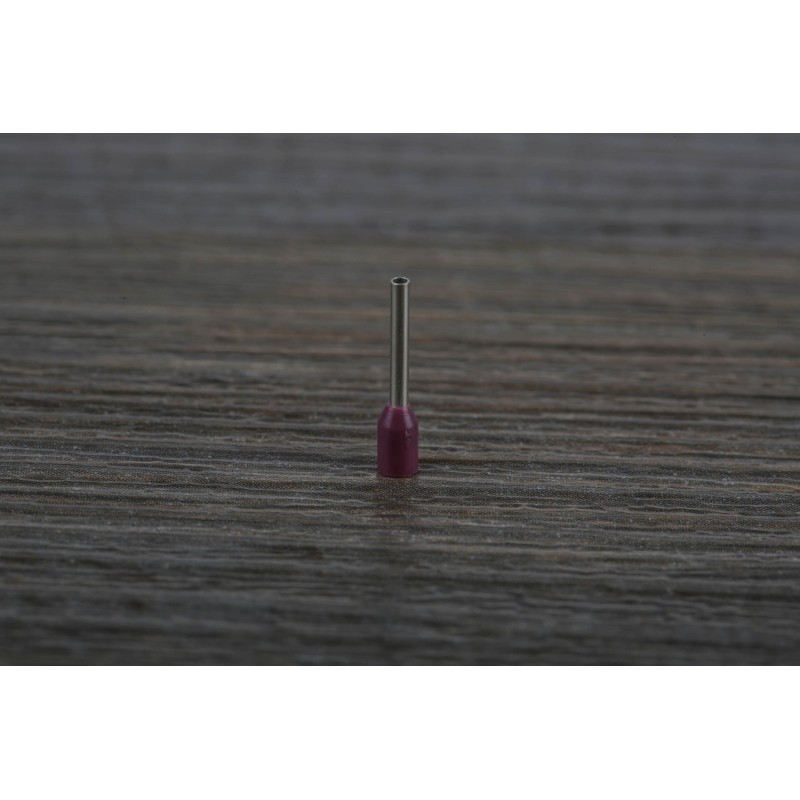

3 Pack of 100 - RS PRO Insulated Crimp Bootlace Ferrule, 8mm Pin Length, 1.1mm Pin Diameter, 0.25mm² Wire Size, Purple

RS PRO Insulated French Colour Coded Bootlace FerrulesFrom RS PRO a range of high-quality French colour coded bootlace ferrules (also known as cord end terminals) for providing a clean end termination to multi-stranded wires. These reliable wire ferrules ensure that you have a positive connection when connecting wires to terminal blocks and captive terminals.What Is a Bootlace Ferrule?A bootlace ferrule is a metal tube or ferrule with a moulded colour coded insulating collar made from nylon. The ferrule is slipped over the end of a multi-stranded wire, crimped and then inserted into a screw or spring clamp connection.Where is a Bootlace Ferrule Used?When the end of a multi-stranded wire is stripped and placed directly under a screw terminal the strands of the wire will naturally fan out under the pressure of the screw. Some strands will go astray. This reduces the quality of the electrical connection and can also result in electrical shorts. When a bootlace ferrule is used, the insulated funnel with it's flared design captures all the strands. These strands are then crimped together in the ferrule tube. The crimped ferrule is then inserted into the terminal to create an electrical connectionFeatures and Benefits• Excellent electrical connection• Reduces short circuits• Colour coded collar for easy ferrule size identification• Nylon insulated collar for reduced leakage, creepage and gas intrusion• Tin plated copper tube for excellent conductivity• Crimped terminal can be repeatedly inserted and removed without degrading end of the wireApplicationsBootlace ferrules are used on multi-stranded wires that are being inserted into screw terminals and terminal blocks. Applications include consumer units, circuit breakers, electrical control panels and any equipment where there is a requirement for a multi-stranded wire connection.Questions and AnswersHow to Crimp a Bootlace FerruleSelect the correct size bootlace ferrule and strip the end of the wire. Cut the wires to the same length as terminal and twist the strands together. Slip the bootlace ferrule (insulated collar first) onto the ends of the wire until the wire strands are flush with the end of the tube. Using a ratchet crimping tool, insert the metal tube of the ferrule into the appropriate crimping section (indicated by sizes marked on the tool). Squeeze the tool handles together until the ratchet releases. A ratchet crimping tool is preferable as the handles will remain locked until a full crimp cycle is completed preventing partial crimps. The crimped wire end is now ready to be inserted into connecting terminalSuitable Crimping ToolsFor ferrules with a wire size range of 0.5 to 6 mm2 use crimping tool stock number 683-1605For ferrules with a wire size range of 10 to 25 mm2 use crimping tool stock number 683-1614For ferrules with a wire size range of 0.5 to 16 mm2 use crimping pliers stock number 464-482For ferrules with a wire size range of 35 or 50 mm2 use crimping tool stock number 683-1617Why RS PRO?RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.NoteLength quoted is Pin LengthRS PRO Insulated Crimp Bootlace Ferrule, 8 mm Pin Length, 1.1 mm Pin Diameter, 0.25 mm² Wire Size, PurpleThis RS PRO insulated crimp bootlace ferrule consists of ametal tube with a plastic insulating collar. It can be crimped over a stranded wire to make a reliable connection with screw or spring clamps. You'll typically find it in consumer units, circuit breakers and anywhere where you need a multi-stranded wire connection. You can strip a multi-stranded wire and place it directly under a screw terminal without a bootlace ferrule. However, the wire strands will fan out under the pressure of the screw, so some will go astray. This reduces the quality of the electrical connection and often causes short circuits. The insulated funnel – with it's flared design – captures all the strands, allowing for better connections.The bootlace ferrule is made from copper for excellent conductivity, while the collar is insulated with nylon for reduced leakage, creepage and gas intrusion. There's a colour-coded collar for easy identification.Features and Benefits• Maximum wire size of 0.25 mm²• Pin diameter of 1.1 mm• Nylon insulation• Purple• Pin length of 8 mm• Insulated• Internal wire size of 26 AWG (American Wire Gauge)• Length of 12.4 mm• For ferrules with a wire size range of 0.5 to 6 mm² use crimping tool stock number 683-1605• For ferrules with a wire size range of 10 to 25 mm² use crimping tool stock number 683-1614• For ferrules with a wire size range of 0.5 to 16 mm² use crimping pliers stock number 464-482• For ferrules with a wire size range of 35 or 50 mm² use crimping tool stock number 683-1617RS PRORS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standardsthey’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.Approvals-
