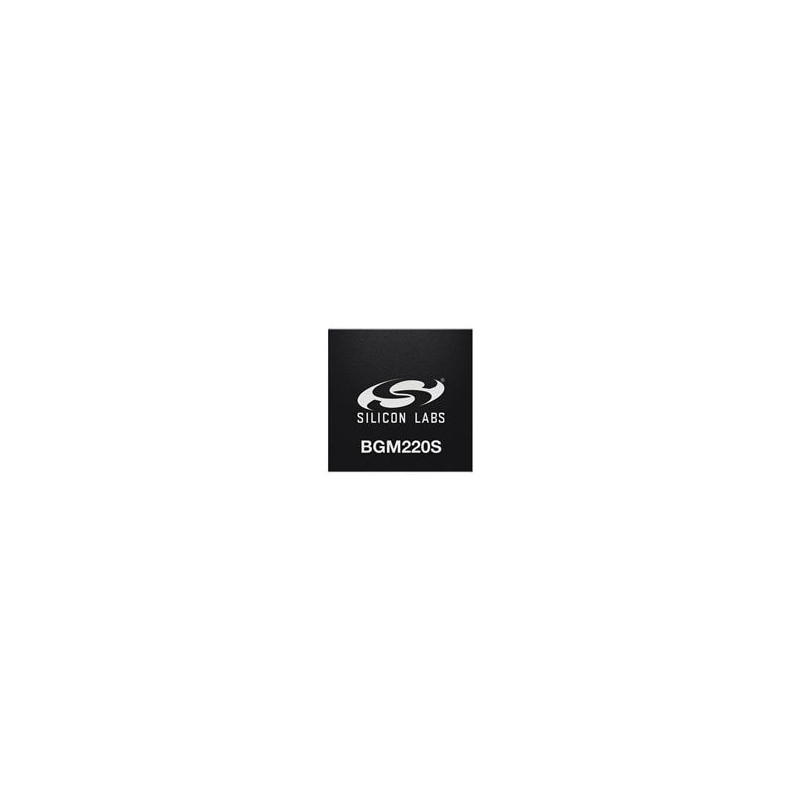

    1 pcs : BGM220SC22WGA2R - Bluetooth Modules - 802.15.1 Wireless bluetooth SiP module, Secure Boot w/Root of Trust and Secure Loa
    • 1 pcs : BGM220SC22WGA2R - Bluetooth Modules - 802.15.1 Wireless bluetooth SiP module, Secure Boot w/Root of Trust and Secure Loa

    1 pcs : BGM220SC22WGA2R - Bluetooth Modules - 802.15.1 Wireless bluetooth SiP module, Secure Boot w/Root of Trust and Secure Loa

    Allparts-UK/M/634-BGM220SC22WGA2R
    £28.17
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    BGM220P/BGM220S Wireless Gecko BLUETOOTH® Modules Silicon Labs BGM220P and BGM220S Wireless Gecko BLUETOOTH® Modules are built to meet the performance, security, and reliability requirements of battery-powered IoT products running on Bluetooth networks. These devices are based on the EFR32BG22 System-On-Chip (SoC) and enable Bluetooth Low Energy (BLE) connectivity. The Bluetooth Modules deliver the best RF range and performance, future-proof capability for a feature and OTA firmware updates, enhanced security features, and low energy consumption. The BGM220P and 220S Modules are a full solution that comes with fully-upgradeable, robust software stacks, worldwide regulatory certifications, advanced development, and debugging tools.
    Product Details
    SILICON LABS
    Allparts-UK/M/634-BGM220SC22WGA2R
    BGM220SC22WGA2R
    10 Items

    Data sheet

    Manufacturer
    Silicon Laboratories
    Dimensions
    6 mm x 6 mm x 1.1 mm
    Output power
    6 dBm
    Receiver sensitivity
    - 95.9 dBm
    Frequency
    2.44 GHz
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    Bluetooth Modules
    Data Rate
    2 Mb/s
    Interface Type
    I2C, SPI, UART
    Core
    ARM Cortex M33
    Product Category
    Bluetooth Modules - 802.15.1
    Packaging
    MouseReel
    RoHS
    Details
    Supply Voltage - Min
    1.8 V
    Supply Voltage - Max
    3.8 V
    Brand
    Silicon Labs
    Moisture Sensitive
    Yes
    Operating Supply Voltage
    1.8 V to 3.8 V
    Factory Pack Quantity Factory Pack Quantity
    2500
    Subcategory
    Wireless & RF Modules
    Supply Current Receiving
    4.2 mA
    Supply Current Transmitting
    4.6 mA
    Memory Size
    32 kB, 352 kB
    Antenna Connector Type
    Chip
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
