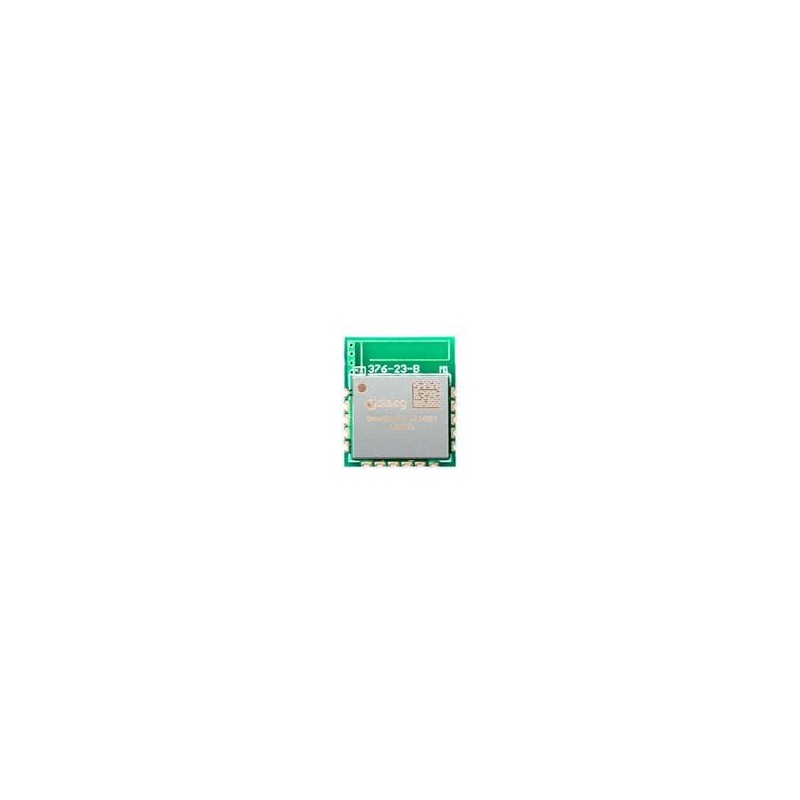

    1 pcs : DA14531MOD-00F01002 - Bluetooth Modules - 802.15.1 Bluetooth Low Energy 5.1 Module with integrated ARM Cortex M0+, memor
    • 1 pcs : DA14531MOD-00F01002 - Bluetooth Modules - 802.15.1 Bluetooth Low Energy 5.1 Module with integrated ARM Cortex M0+, memor

    1 pcs : DA14531MOD-00F01002 - Bluetooth Modules - 802.15.1 Bluetooth Low Energy 5.1 Module with integrated ARM Cortex M0+, memor

    electronicparts-UK/M/724-DA14531MODF01002
    £15.60
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    DA14531 SmartBond TINY™ Module Renesas / Dialog DA14531 SmartBond TINY™ Module is specifically optimized to significantly reduce the cost of adding BLUETOOTH® low energy functionality to an IoT system. The hand solderable stamp type module measures 12.5mm x 14.5mm x 2.8mm in size and offers 9 GPIOs and an integrated antenna. All external components, including passives, XTAL, antenna, and FLASH memory, are integrated into this module so that users don't need to source individual components separately. The DA14531 SmartBond TINY module is effectively futureproofed due to a combination of Bluetooth 5.1 compliance and support for over-the-air software updates.
    Product Details
    Renesas / Dialog
    electronicparts-UK/M/724-DA14531MODF01002
    DA14531MOD-00F01002
    10 Items

    Data sheet

    Manufacturer
    Renesas Electronics
    Dimensions
    12.5 mm x 14.5 mm x 2.8 mm
    Width
    12.5 mm
    Height
    2.8 mm
    Length
    14.5 mm
    Output power
    2.2 dBm
    Receiver sensitivity
    - 93 dBm
    Frequency
    2.44 GHz
    Series
    DA14531
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    Bluetooth Modules
    Data Rate
    2 Mb/s
    Interface Type
    I2C, SPI, UART
    Core
    ARM Cortex M0+
    Product Category
    Bluetooth Modules - 802.15.1
    Packaging
    Cut Tape
    RoHS
    Details
    Supply Voltage - Min
    1.8 V
    Supply Voltage - Max
    3.3 V
    Brand
    Renesas / Dialog
    Moisture Sensitive
    Yes
    Operating Supply Voltage
    1.8 V to 3.3 V
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Wireless & RF Modules
    Unit Weight
    2.338 g
    Supply Current Receiving
    2 mA
    Supply Current Transmitting
    4 mA
    Memory Size
    128 kB
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
