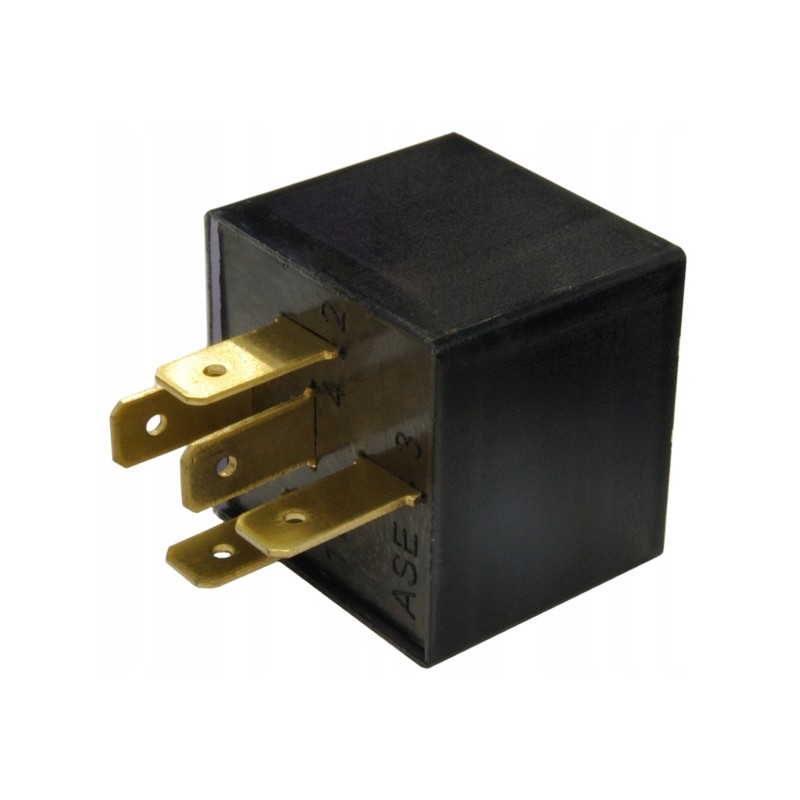

Bistable impulse automotive relay 4 times

[Internal number: ID1291]

4-WSP BISTABLE CAR RELAY Principle of operation: After the control signal (+12V pulse) appears on the control input 1, the relay will close contacts 3 and 5.

The reappearance of the control signal will change the relay state to the opposite (off), i.e. it will open contacts 3 and 5.

In other words: each occurrence of a control pulse on input 1 changes the relay state to the opposite one (closed/open)

Parameters: Coil control: 11V-15V

Maximum current: 30A (max 420W)

Number of connectors: 5 pcs.

Connector width: 6.3mm Tightness: IP65

Operation in the temperature range: from -30°C to +70°C

Connection: 1) Control '+' 2) Power supply '-' 3) NO working contact 4) Power supply '+' 5) NO working contact The relay requires constant power supply on contacts 2 and 4, we supply a control signal to contact 1.

The effect of the relay's operation is the closing and opening of working contacts 3 and 5. Dimensions:
