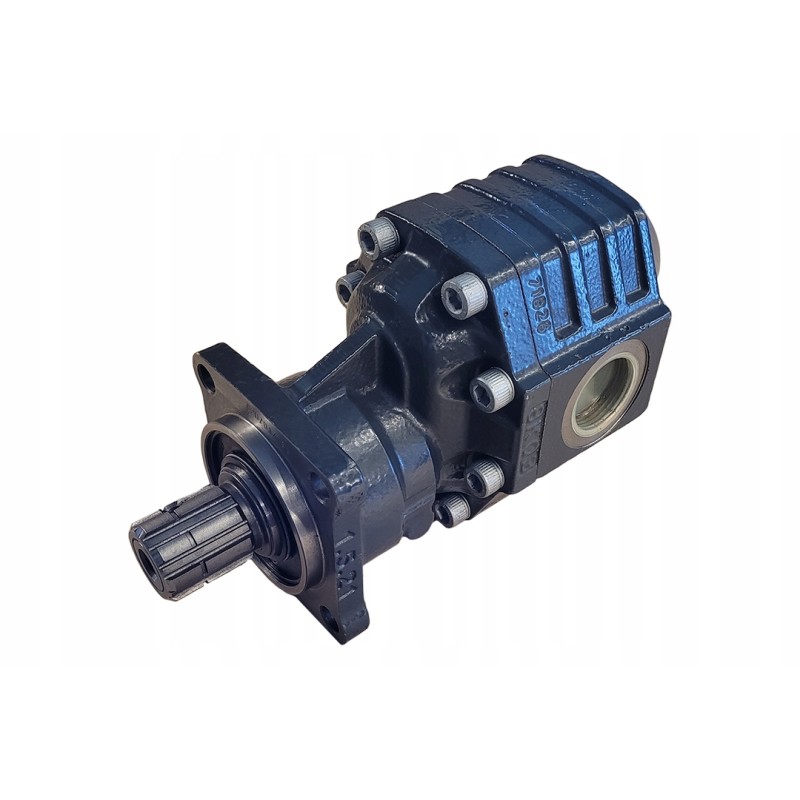

Gear pump 82 l/minBinotto NPH-82 - RH Catalog number: 10501110824BI
Gear pump type NPH-82 ISO for dump trucks, roadside assistance and other machines.
Production: Binotto-OMFB Italy
capacity: 82 l/min
continuous operating pressure: 190 bar
peak pressure: 220 bar
operating range:
continuous operation: 300-1500 rpm
temporary operation: up to 1800 rpm
structure:
mounting: ISO 4 holes ø12.5 - 80 x 80 mm
shaft 8 cutter: 8x32x36 (ISO 14)
connections:
input: IN=1.1/4' (on the side of the pump)
output: OUT = 3/4' (on the back or side of the pump)
direction of rotation: RIGHT
Binotto pumps is a guarantee of the highest quality - made in Italy.
Other technical details in the attachment and in the photos.
