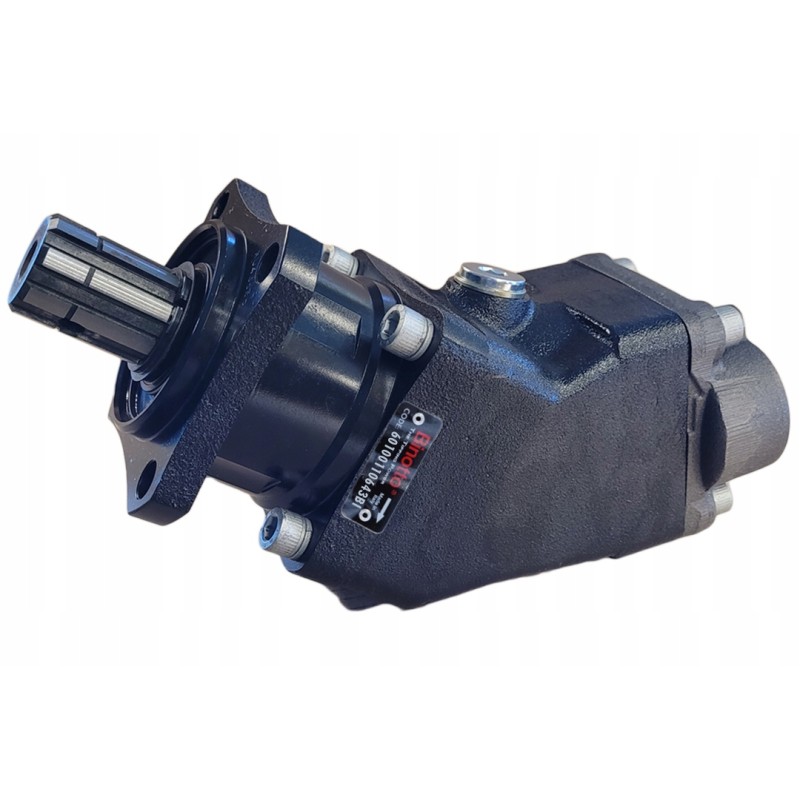

Binotto hds64 p slant multi-piston hydraulic pump

Angular piston pump 64 l/minBinotto HDS-64 - RIGHT Catalog number: 60100110643BI

Available in highly loaded automotive hydraulic systems used for continuous operation: TANKS, WINCHES, MOVING FLOORS, SILOS, etc. and those operating at pressure exceeding 200 bar: CRANES, self-unloading structures HDS, gantry, hook.

Production: Binotto-OMFB Italy

capacity: 64 l/min (at 1000 rpm)

operating range:

continuous work: 300-1900 rpm

temporary work: up to 2700 rpm

type: angular piston

inclination angle: 40 degrees

continuous operating pressure: 350 bar

peak pressure: 400 bar

inch connections:

input: IN = 1.1/4'

output: OUT = 3/4'

Construction:

mounting : ISO 4 holes ø13 - 80 x 80 mm

8-cutter shaft: 8x32x36 (ISO 14)

direction of rotation: RIGHT

We sell pumps with other parameters.

Other technical details in the attachment and in the photos.
