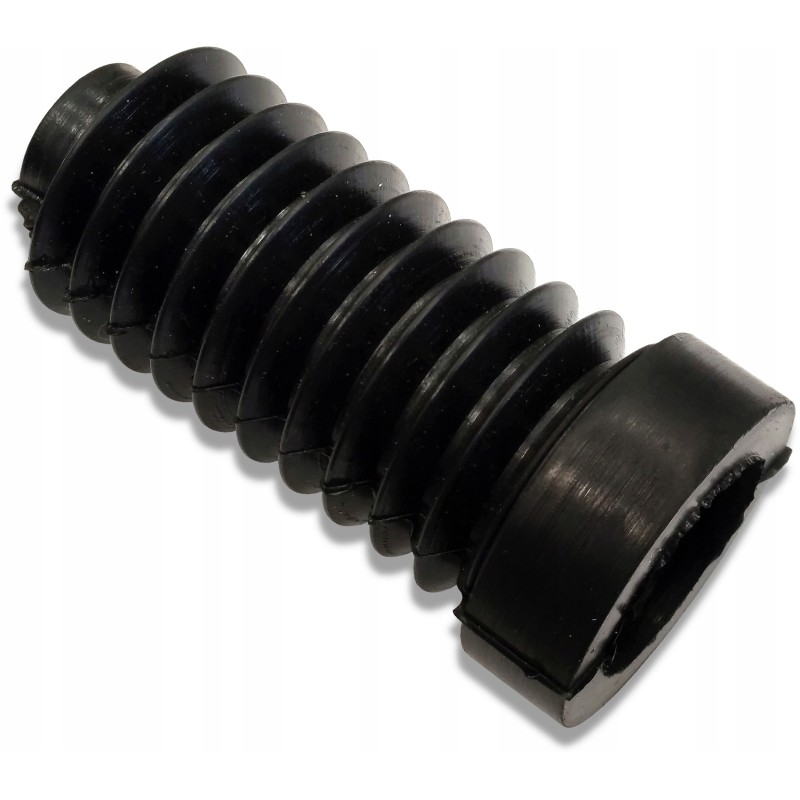

Bellows, rubber cover of the actuator, edge cn1a 20x86

BELLOWS RUBBER COVER FOR THE BRZEG 1.20/86 SPREADER CYLINDER SKRAW-MET CODE: [2703] Used in double-acting cylinders with a stroke of 90 mm with the symbol: CN1A 1.20/86

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry or construction.

Technical specifications: Diameter of the right side sliding onto the outside part of the actuator: approx. 30 mm

Diameter of the left side sliding onto the piston rod: approx. 17 mm

Length of the cover when at rest: approx. 94 mm Maximum length of the cover: approx. . 140 mm All dimensions given in the specification were measured with a caliper and are approximate due to the flexibility of the casing.
