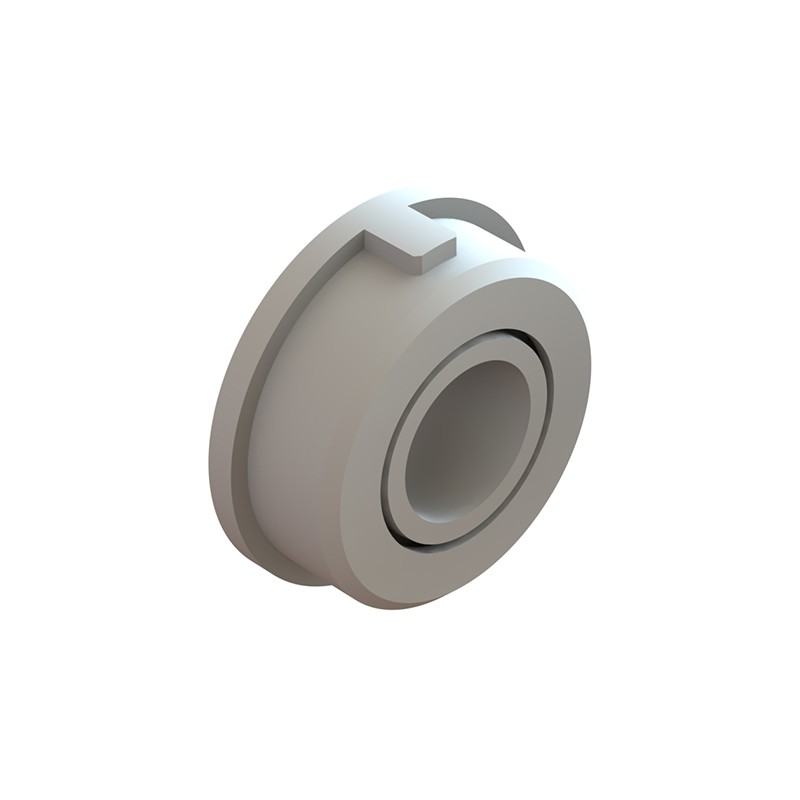

5 Bag of 2 - AC686FZZK/4N/D BNL AC686FZZK/4N/D Single Row Deep Groove Ball Bearing- Both Sides Shielded 6mm I.D, 13mm O.D
    • 5 Bag of 2 - AC686FZZK/4N/D BNL AC686FZZK/4N/D Single Row Deep Groove Ball Bearing- Both Sides Shielded 6mm I.D, 13mm O.D
    • 5 Bag of 2 - AC686FZZK/4N/D BNL AC686FZZK/4N/D Single Row Deep Groove Ball Bearing- Both Sides Shielded 6mm I.D, 13mm O.D

    5 Bag of 2 - AC686FZZK/4N/D BNL AC686FZZK/4N/D Single Row Deep Groove Ball Bearing- Both Sides Shielded 6mm I.D, 13mm O.D

    5(Allparts)8841212
    BNL
    BNL AC686FZZK/4N/D Single Row Deep Groove Ball Bearing- Both Sides Shielded 6mm I.D, 13mm O.D
    £66.81
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Acetal Type Miniature Radial Ball Bearings - MetricA range of miniature plastic bearings by BNL designed to replace steel bearings in demanding long life and light load applications. Made from acetal, a semi-crystalline material, these bearings deliver excellent long-term wear performance and can be subjected to load, temperature and most fluids.These bearings are also lightweight, require no external lubrication and offer lower friction at higher speeds than their steel equivalent. With their fully moulded inner and outer races, these BNL bearings have a greater life expectancy than similar bearings with machined races.Features and Benefits• High performance• Operate in temperatures from -40°C to 100°C• Low friction at high speeds• Require no external lubrication• Good life expectancy• Dimensionally stable when subjected to load• Stainless steel balls as standardProduct Application InformationProduced to meet the high performance needs of business machines, office equipment and other light duty mechanical applications.
    Product Details
    BNL
    5(Allparts)8841212
    AC686FZZK/4N/D
    10 Items

    Data sheet

    Manufacturer
    BNL
    Outside diameter
    13mm
    A-Supplier
    Allparts-UK/15/R-17
    Number of Rows
    1
    Inside Diameter
    6mm
    Dynamic Load Rating
    29.4N
    Static Load Rating
    12.3N
    Race Width
    5mm
    Ball Bearing Type
    Single Row Deep Groove Ball Bearing
    Sealing Arrangement
    Both Sides Shielded
    Bearing Clearance
    CN
    Ball Material
    Stainless Steel
    Cage Material
    Acetal
    Bore Type
    Parallel
    Partial Bearing Code
    686
    Race Type
    Flanged
    Race Material
    Acetal
    Bearing Series
    8 Extra Thin Section
