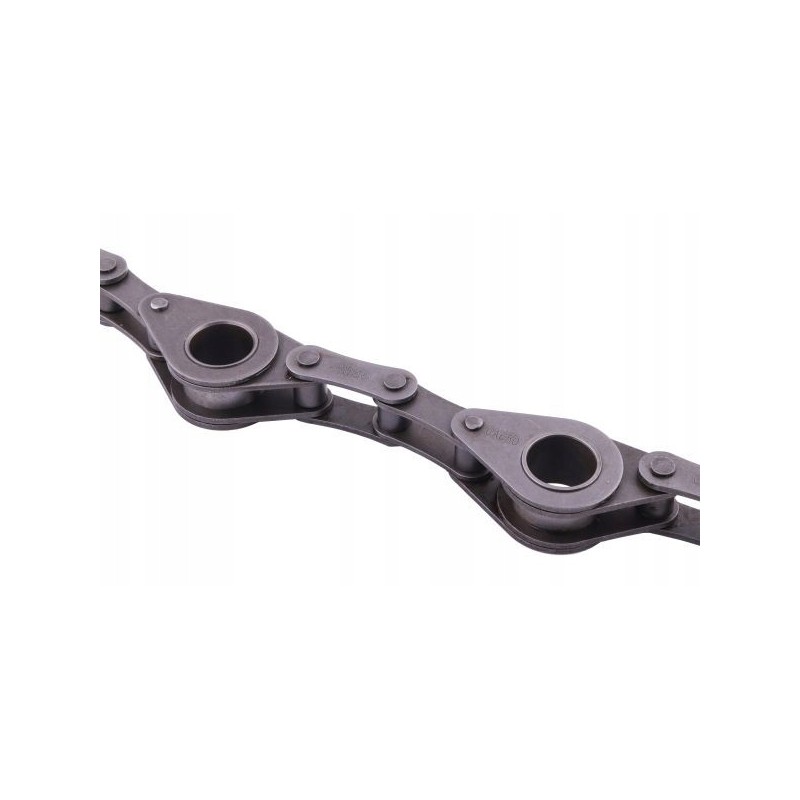

Ca650 chain, 1,160 links, 40 beams, Sipma press

CHAIN CA650-160 LINKS COIL PRESS SIPMA 5276077500 WARYŃSKIChain CA650-160 links application Press Coil Sipma 5276077500 Waryński

* Parameters:

*Number of Cells: 160 cells

*Graduation: 2' / 50.80 mm,

*Internal width: 19.05 mm,

*Max. diameter of rolls: 19.05 mm,

*Max. fi pins: 9.53 mm,

*Tile width: 25.00 mm,

*Max. width: 40.40 mm,

*Max. width connecting link: 44.70 mm,

*Average chain breaking load: 90.0 kN,

*Min. chain breaking load: 99.0 kN,

Increased abrasion resistance.

Hardening makes the chains stronger and lasts longer. This process takes place under special supervision, which ensures perfect parameters of the furnace and cooling liquid.

Tensile strength.

This is due to the fit of the pins with the plates, with an accuracy of up to a micron. Thanks to this, the chain works efficiently - the links do not break out and there is no slack. Precise grinding of the chain's cylindrical elements protects it against kneading and abrasion of the cylindrical elements.

Increased tearing resistance.

All pins are forged with appropriate, repeatable force. If the chain is too tight, it may damage other components of the chain, while if it is too weak, it may break the chain. Reproducible crimping force thanks to the automated process guarantees that each link of the chain is identical and perfect

Perfect cooperation with the wheels.

Accurate and repeatable distances between the pins ensure that the chain fits perfectly on the wheel, thus not damaging the wheel teeth.

-️ Application: Round baler Roll press, Sipma FARMA Z-276 SIPMA PS 1510 FARMA (Z-276/1)

* Producer: Waryński
