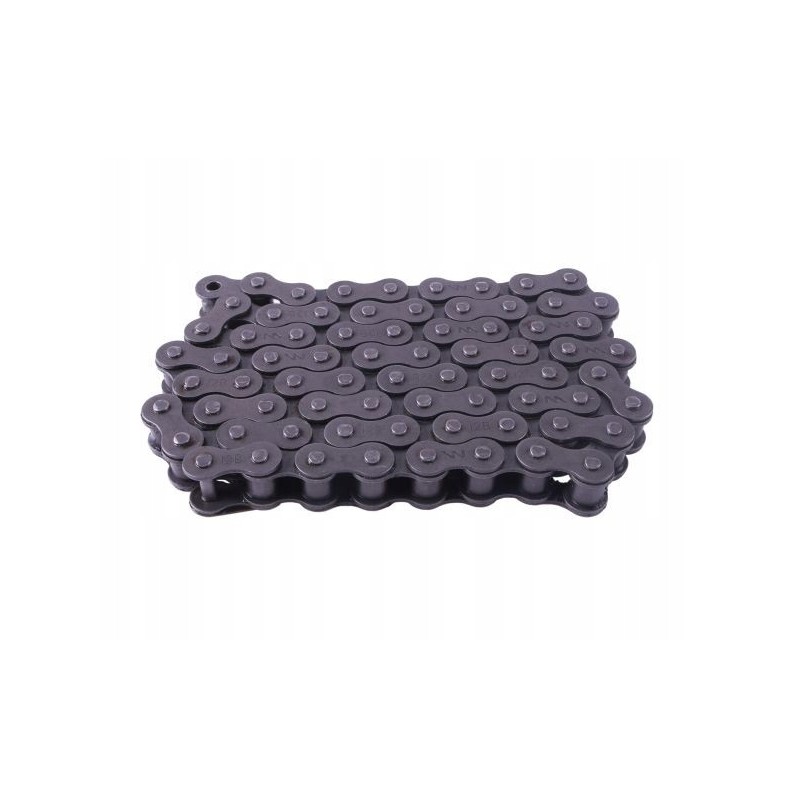

Roller chain 12b1 72ps Anna roller press

ROLLER CHAIN 12B1-72PS, PICKUP, BALER WINDOW SIPMA 5270038200 SIFTER ANNA 5644511250 WARYŃSKIRoller chain 12B-1-72Ps, pick up application Baler Winder Sipma 5270038200 Sifter Anna 56445112 50 Waryński

*Parameters:

*Pitch: 3/4' / 19.05 mm

*Internal width: 11.68 mm

*Max. diameter of rolls: 12.07 mm *Max. pin diameter: 5.72 mm

*Inner plate thickness: 1.8 mm

*External plate thickness: 1.8 mm

*Plate width: 16.13 mm

*Max. width: 22.70 mm

Increased abrasion resistance.

Hardening makes the chains stronger and lasts longer. This process takes place under special supervision, which ensures perfect parameters of the furnace and cooling liquid.

Tensile strength.

This is due to the fit of the pins with the plates, with an accuracy of up to a micron. Thanks to this, the chain works efficiently - the links do not break out and there is no slack. Precise grinding of the chain's cylindrical elements protects it against kneading and abrasion of the cylindrical elements.

Increased tearing resistance.

All pins are forged with appropriate, repeatable force. If the chain is too tight, it may damage other components of the chain, while if it is too weak, it may break the chain. Reproducible crimping force thanks to the automated process guarantees that each link of the chain is identical and perfect

Perfect cooperation with the wheels.

Accurate and repeatable distances between the pins ensure that the chain fits perfectly on the wheel, thus not damaging the wheel teeth.

-️ Application:

SIPMA FARMA Z-276 fixed chamber balers with pick-up

SIPMA CLASSIC Z-279 fixed chamber balers, pick-up

SIPMA FARMA2 Z-279 fixed chamber balers

pick-up

SIPMA FARMA2 Z-569 fixed chamber balers

pick-up

* Producer: Waryński
