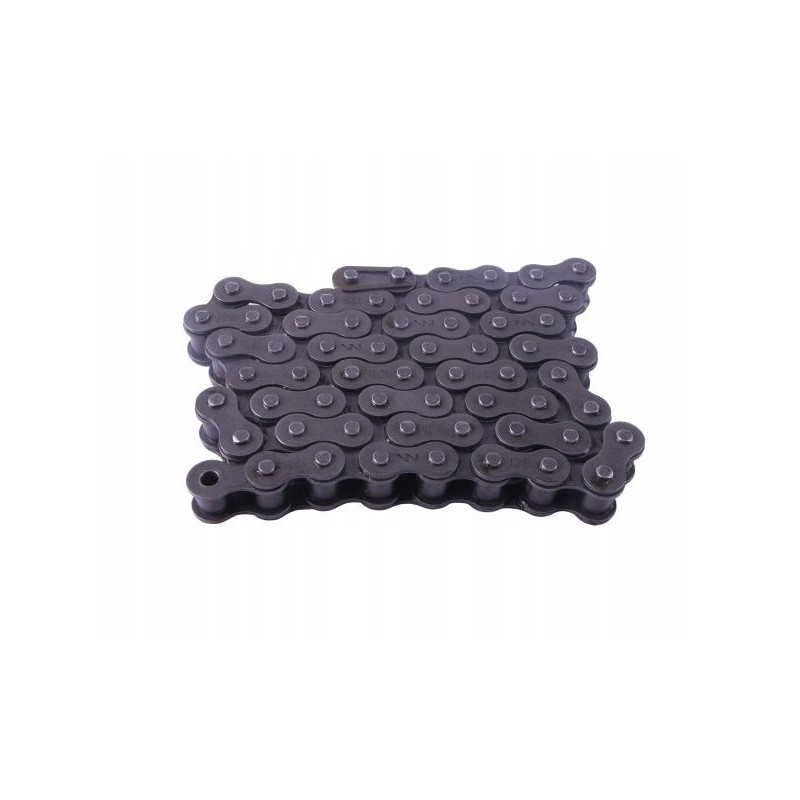

Roller chain 12b1 60ps for the feeder of the Warynski press

ROLLER CHAIN 12B-1-60PS, FEEDER, WINDER PRESS SIPMA 5270038100 WARYŃSKIRoller chain 12B-1-60PS, feeder, application, Sipma roll press 5270038100 Waryński

*Parameters:

*Pitch: 3/4' / 19.05 mm

*Internal width: 11.68 mm

*Max. diameter of rolls: 12.07 mm *Max. pin diameter: 5.72 mm

*Inner plate thickness: 1.8 mm

*External plate thickness: 1.8 mm

*Plate width: 16.13 mm

*Max. width: 22.70 mm

Increased abrasion resistance.

Hardening makes the chains stronger and lasts longer. This process takes place under special supervision, which ensures perfect parameters of the furnace and cooling liquid.

Tensile strength.

This is due to the fit of the pins with the plates, with an accuracy of up to a micron. Thanks to this, the chain works efficiently - the links do not break out and there is no slack. Precise grinding of the chain's cylindrical elements protects it against kneading and abrasion of the cylindrical elements.

Increased tearing resistance.

All pins are forged with appropriate, repeatable force. If the chain is too tight, it may damage other components of the chain, while if it is too weak, it may break the chain. Reproducible crimping force thanks to the automated process guarantees that each link of the chain is identical and perfect

Perfect cooperation with the wheels.

Accurate and repeatable distances between the pins ensure that the chain fits perfectly on the wheel, thus not damaging the wheel teeth.

-️ Application:

SIPMA FARMA Z-276 fixed chamber balers, roller drive I SIPMA PS 1510 FARMA Z-276/1 fixed chamber balers, roller drive I SIPMA CLASSIC Z-279 fixed chamber balers, roller drive I SIPMA PS 1210 CLASSIC Z-279/1 CLASSIC fixed chamber balers, roller drive I Presses fixed chamber SIPMA FARMA2 Z-279 roller drive I SIPMA PS 1211 FARMA PLUS fixed chamber balers Z-279/1 FARMA PLUS roller drive I SIPMA FARMA2 Z-569 fixed chamber balers roller drive I SIPMA PS 1221 fixed chamber balers FARMA PLUS Z-569/1 roller drive And

* Producer: Waryński
