Product Details
10electronicpartsUK2553415ND

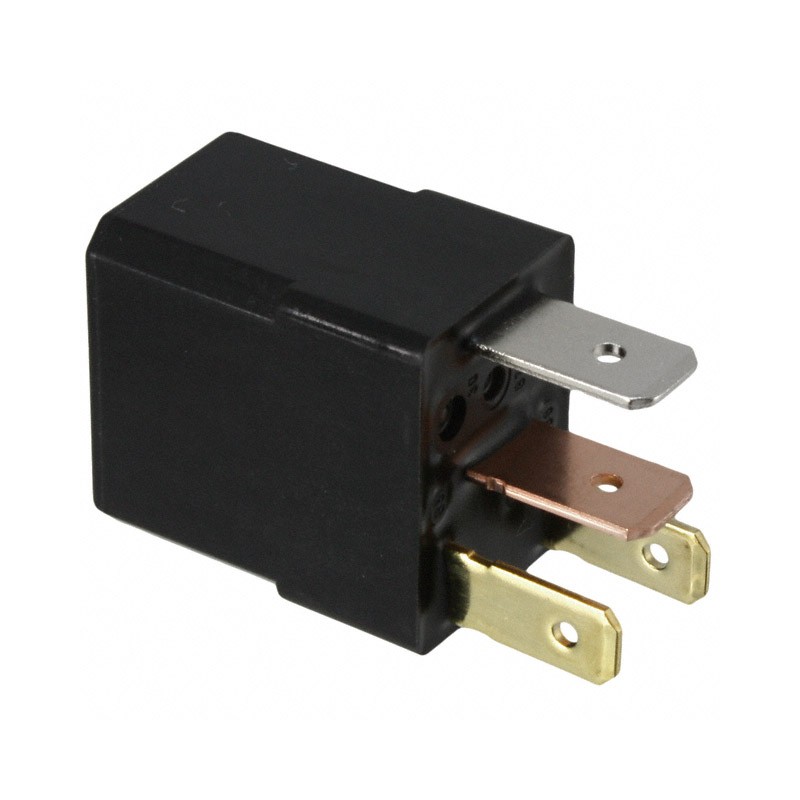

CM1AF-R-12V
3 Items
Data sheet
- Manufacturer
- Panasonic Electric Works
- Operating temperature
- -40°C ~ 85°C
- Part status
- Active
- Contact material
- Silver Alloy, Cadmium Free
- Operate time
- 10 ms
- Series
- CM
- Mounting Type
- Socketable
- Coil Resistance
- 96 Ohms
- Switching Voltage
- 14VDC - Nom
- Features
- Resistor, Sealed - Flux Protection
- Coil Voltage
- 12VDC
- Termination Style
- Plug In
- Packaging
- Tube
- Contact Form
- SPST-NO (1 Form A)
- Contact Rating (Current)
- 35 A
- Coil Current
- 125 mA
- Coil Type
- Non Latching
- Must Operate Voltage
- 7 VDC
- Must Release Voltage
- 1.2 VDC
- Release Time
- 10 ms
