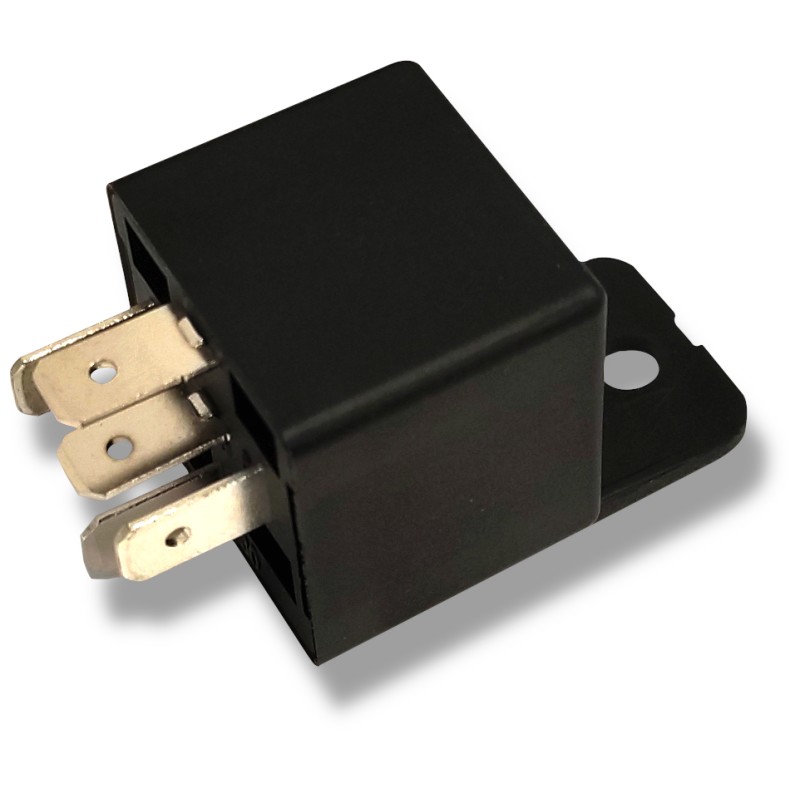

Car relay 12vdc 30 40a 5 pins 4120

Car relay 4120 normally open - normally closed SKRAW-MET CODE: [2880]The relay is an electromagnetic device that allows current to flow from the battery to the actuator (e.g. dipped beam or direction indicators).

It is the most frequently used type of relay used in cars. Application: ignition interlocks

car alarm (as a lock relay)

gas installations (to disconnect injectors)

switching on lights, halogen lamps, etc.

for automatic daytime running lights switch

Technical specifications: Dimensions of the cube: 31.5 x 28 mm

Height: 41.5 mm

Height with pins: 52 mm

Mounting hole: 6 mm

Supply voltage: 12 VDC

Has two contacts: NC(30A) NO(40A)

Number of pins: 5

Protection level: IP40

Coil material: copper

Contact material: silver alloy

Connecting: Black (86) '+' parking lights Yellow (87) unused cut / insulate Red (87a) '+' daytime running lights with turn signals Blue (30) '+' ignition switch White (85) '-' ground Note: the colors of the wires are not fixed for each plugin and are subject to change. When connecting the light relay, it is best to follow the given PIN numbering.

Operating diagram:
