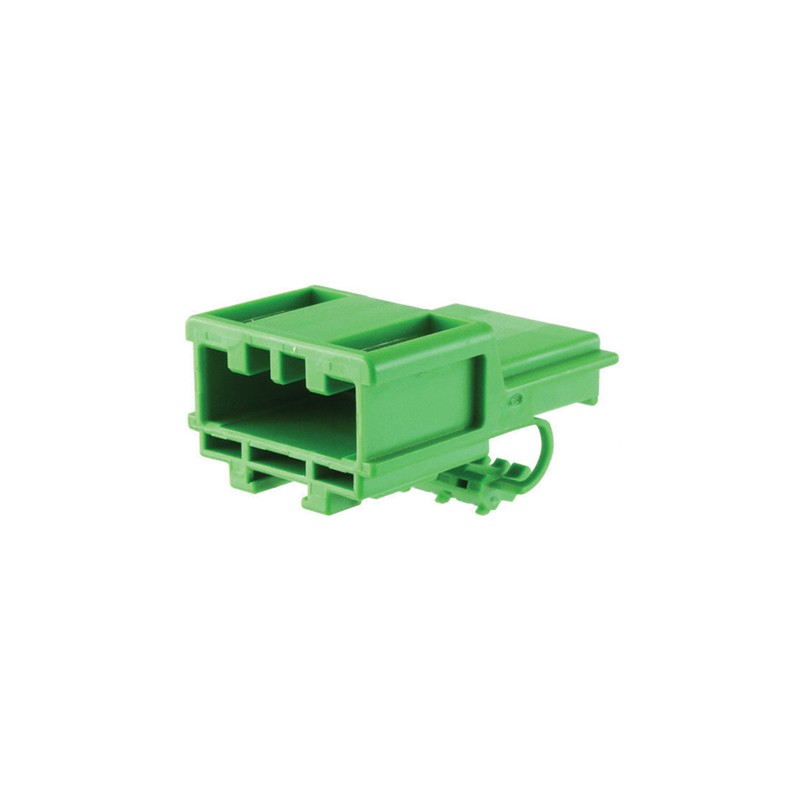

10 pcs - IL-AG5-7P-S3C1 JAE, IL-AG5 Automotive Connector Socket 7 Way
    • 10 pcs - IL-AG5-7P-S3C1 JAE, IL-AG5 Automotive Connector Socket 7 Way

    10 pcs - IL-AG5-7P-S3C1 JAE, IL-AG5 Automotive Connector Socket 7 Way

    10(Allparts)6909849
    JAE
    10 pcs - IL-AG5-7P-S3C1 JAE, IL-AG5 Automotive Connector Socket 7 Way
    £51.08
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Socket Housing 1 Row Standard pin contactNoteAccepts pin contacts see, for example, stock no. 690-9896JAE IL-AG5 Series Automotive ConnectorsDesigned for automotive instrument panel applicationsMechanical lock assures positive matingUnique housing configuration helps prevent mismatingDouble lock mechanism prevents dislodging of contactsA polarized version is available (for single row, 5 and 6 contacts only)High reliable socket contactsSimplified crimp-type termination
    Product Details
    JAE
    10(Allparts)6909849
    IL-AG5-7P-S3C1
    10 Items

    Data sheet

    Manufacturer
    JAE
    Width
    23.3mm
    Height
    22.3mm
    Colour
    yellow
    Current rating
    3A
    Depth
    34.8mm
    A-Supplier
    Allparts-UK/15/R-10
    Series
    IL-AG5
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Cable Mount
    Minimum Operating Temperature
    -40°C
    Type
    Socket Housing
    Housing Material
    PBT
    Number of Contacts
    7
    Gender
    Female
