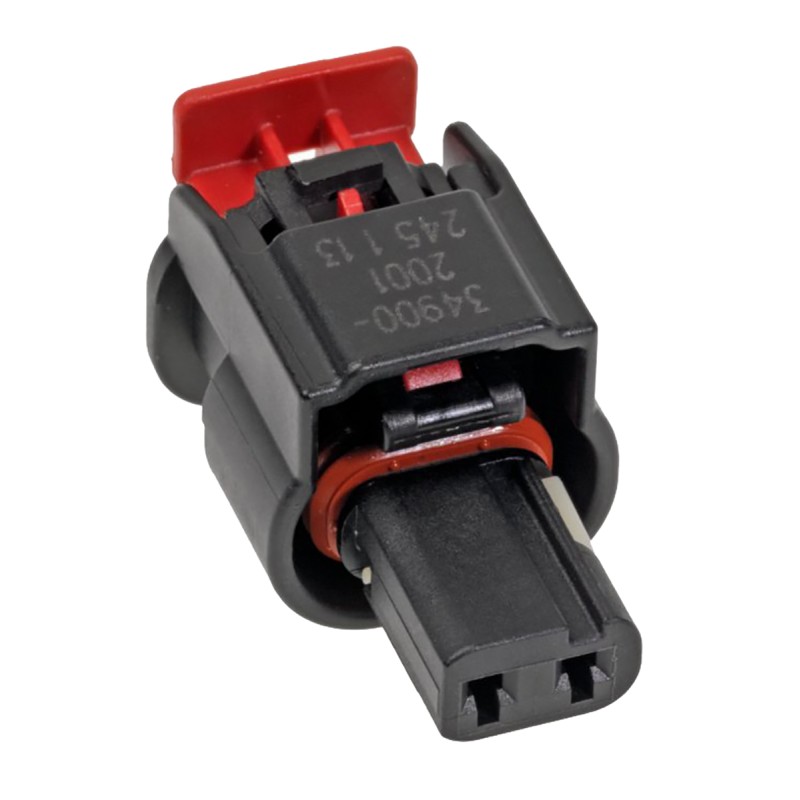

20 pcs - 34900-2120 Molex, MXP120 Automotive Connector Socket 2 Way, Crimp Termination

Molex MXP120™ Sealed Receptacle ConnectorsMXP120 range of high performance sealed wire to wire automotive connectors designed for use in harsh environments in the automotive and commercial vehicle manufacturing industry. These MXP120 automotive connectors have a space saving package that meets USCAR specifications and power requirements of up to 13.0A. With 1.20 mm terminals on a 4mm pitch the MXP120 sealed automotive connector system offers significant space savings compared to existing 1.5mm connection systems. The MXP120 connector system uses single wire seals (SWS) and robust perimeter seals giving them an IP68 rating and able to withstand high-pressure spray environments. The MXP120 receptacle housings are available with medium or long shrouds for 4 circuits and above and short shrouds for versions with fewer than 4 circuits. These shrouds ensure that the whole range of MXP120 receptacle connectors are scoop proof. Independent Secondary Locking (ISL) provides secure terminal positioning and helps to detect terminals that are only partially installed. To ensure secure mating is achieved the MXP120 receptacle connectors feature an integral locking latch with that makes an audible click when mating is achieved. Various keying options are also available to aid accurate alignment and mating (refer to manufactures datasheet on our website for details)For suitable crimp terminals use TE Connectivity 1.2 LL SWS receptacle terminals.Features and BenefitsSpace saving design with 1.20 mm terminals on 4.00 mm pitchSingle Wire Seals (SWS) for IP68 ratingAccepts wire sizes of up to 1.00mm2Compatible with AK and USCAR interfaces for global acceptance and marketabilityShrouds for scoop proof protection of terminalsIndependent Secondary Locking (ISL) for terminal positioningLocking latch for secure matingKeying for accurate alignmentApplicationsThe compact and robust design of these MXP120 automotive connectors makes them ideal for use in space-constrained body electronics and powertrain applications in the automotive and commercial vehicle manufacturing industry.Body electronics connections in wet areas T3-V1-S2 with tin terminals, T3-V2-S2 with silver terminals. Applications include exterior lighting, indicators and door lock mechanisms.Powertrain (T3-V2-S2 125°C on engine vibration. Applications include fuel injection, emission controls, ignition coilsMolex Automotive Connector, 13A Current Rating, 14V DC Voltage Rating - MXP120 Series - 34900-2120Looking for a trusty messenger to carry signals from cables to your circuit board? Choose this automotive connector from Molex. Its two-position design means you can transmit to a pair of controls simultaneously, reducing the wiring needs of your setup. This unit is designed to handle both wire-to-board and wire-to-wire connections, so it's a versatile piece of kit. Its 13A current rating makes it useful in high-current-consuming applications.Features & Benefits• Nylon housing withstands wear and impact to deliver long-term performance in harsh environments• Operating temperature range between -40°C and +155°C to withstand use in vehicles• 4mm pitch provides enough space between wires to prevent short circuitsApplications • Automotive industry• Agricultural equipment• Aerospace facilitiesHow do I terminate cables to this connector?To link cables to this unit, use the crimping method. This gives you an air-tight connection that doesn't give in to vibration and heat.Molex MXP120™ Sealed Connector System
