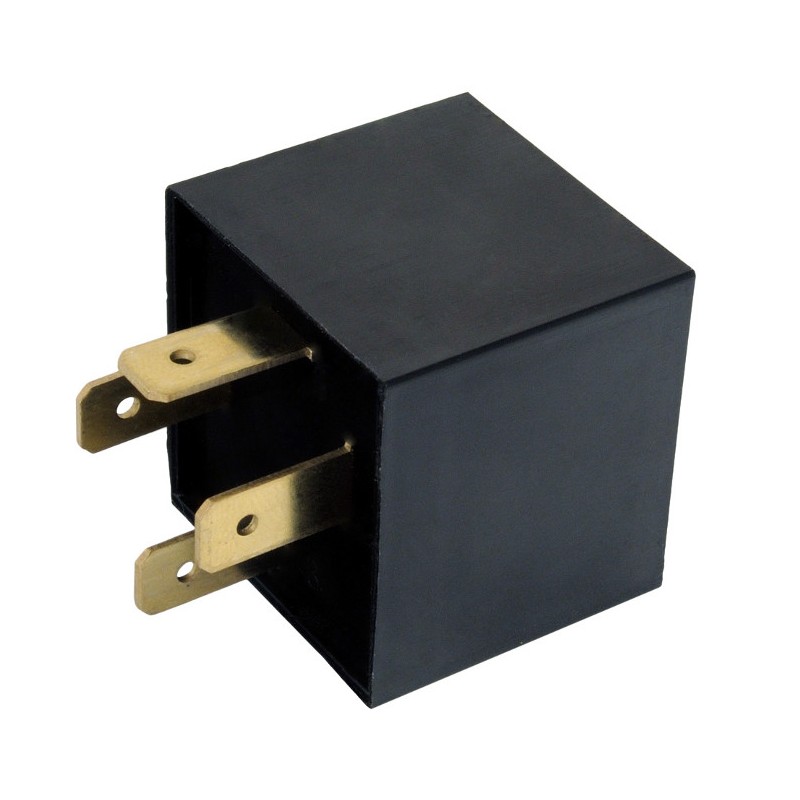

Automotive bistable impulse relay p4wsp

[Internal number: ID1670]

BISTABLE CAR RELAY P4WSP Principle of operation: After the control signal (+12V pulse) appears on the control input 1, the relay will close contacts 3 and 5.

The reappearance of the control signal will change the relay state to the opposite (off), i.e. will open contacts 3 and 5.

In other words: each appearance of a control pulse at input 1 changes the relay state to the opposite (closed/open).

Thus, each control pulse (+) given to input 1 will cause the appearance or disappearance of ( depending on the current state of the relay) voltage (+) at output number 5.

Parameters: Coil control: 11V-15V

Maximum load: 30A (max 420W)

Supply current (relay off): 1mA

Supply current (relay on) : 40mA

Number of connectors: 4 pcs

Connector width: 6.3 mm

Tightness: IP65

Operation in the temperature range: from -30°C to +70°C

Connection: 1) Control '+' 2) Power supply '- '3) Power supply '+'4) None5) Output '+'The relay requires constant power supply on contacts 2 and 3, we supply a control signal to contact 1.

The effect of the relay operation is the closing and opening of the power supply contact (3) with the output contact (5). ).

Relay dimensions: The P4WSP series of relays is based on the proven, recognized and valued 4-WSP bistable relays for years. In the new version, in accordance with the suggestions of most users, contacts 3 and 4 have been connected (bridged). This solution simplifies installation , saves time and ensures trouble-free connection of the relay. Additionally, unlike its predecessors, the new series is enclosed in much smaller housings, which differ only slightly from the commonly used mini relays. Thanks to this, P4WSP relays can be successfully used in boxes and housings in which the previous generation simply did not fit. Below, as an example, we present photos of the MTA box (ID658) in which two relays from the new series can be easily used.
