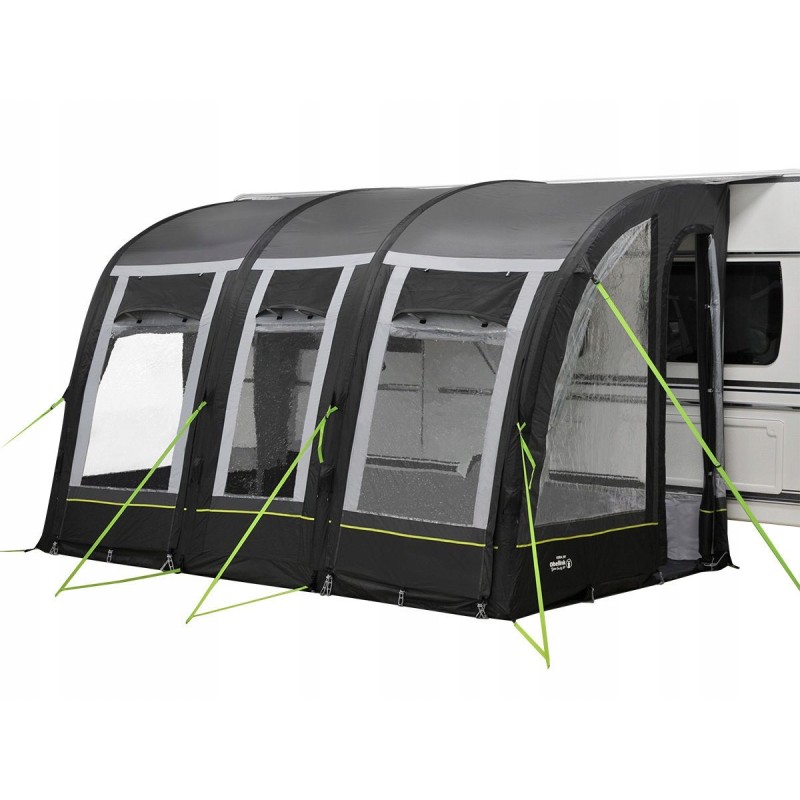

Pumped vestibule for camper trailer 390

The Obelink Viera 390 Easy Air is a caravan vestibule with an inflatable frame that has many options when it comes to ventilation, windows and doors. We can offer this vestibule at an attractive price.

The vestibule is standardly equipped with a suitable floor, a lower wind flap, a wheel flap, pegs, guy ropes, tension belts, a hand pump and a bag. To ensure that the vestibule adheres well to the caravan, pressure bars are included, which, combined with foam cushions, create a perfect seal against drafts with the caravan wall.

Inflatable frame

Obelink Viera 390 Easy Air has air tubes and the valves can be accessed from the outside tent. The roof comes with 3 inflatable transverse tubes, which can be used to additionally stretch the roof to make the tent more stable. A hand pump is also included. For even greater stability, you can optionally purchase 3 additional inflatable air tubes to have a total of 6 roof tubes.

Windows and doors

There are 3 windows in the front wall, all of which can be closed from the inside with a curtain. The left and right panels of the front wall serve as doors and can also be erected as a canopy, using the posts provided. There is a permanent ventilation opening above each panel, which is protected against rain. Both side walls have an entrance, which is additionally equipped with an additional door with a mosquito net. In combination with the ventilation holes at the front of the awning, you can perfectly ventilate the vestibule. There is also a window in both side walls that can be closed from the inside with a curtain.

Specification

Tent type: Universal vestibule

Warranty period: 24 months

Brand: Obelink

Number of entries: 4

Number of tubes: 4

Number of roof pipes: 3

Number of ventilation points: 5

Possibility of expansion:

Front wall: Roll-up door, Inner window cover, Ventilation opening

Min. straight strip length: 390 cm

Kedra length: 450 cm

Left side wall: Mesh door, Roll-up, Inner window cover

Right side wall: Mesh door, Roll-up, Inner window cover

Wind apron: Single

Suitable vehicle: Caravan

Insect net:

Floor type: Loose

Inflatable:

Structure height: 240 - 255 cm

Kedra thickness: 7 mm

Package height: 40 cm

Package length: 84 cm

Package width: 41 cm

Demonstration model available in the hypermarket:

Depth: 250 cm

Length: 390 cm

Area: 9.75 m²

Color: Gray

Total weight: 25.2 kg

W complete with: Pressure rods, Bag, Fluorescent fastening straps, Hand pump, Pegs, Covered zipper, Wheel cover, Floor

Floor material: PE

Outer tent material: Polyester

Water column, flysheet: 3000 mm

Material quality : 150 Denier

Tubes: Air tubes
