Loader, filling hydraulic accumulator

CHECKING AND FILLING DEVICE FOR HYDROACCULATORS[1375]

As a basic version, it meets many requirements. The universal gas tester and filler VGUPKIT is an irreplaceable device for most hydraulic accumulators available on the market.

It is used to check and fill the initial pressure of diaphragm, piston and diaphragm vessels.

To use it, it is screwed onto the battery relief valve and a high-pressure hose is connected to the nitrogen cylinder.

Application: Inflation of battery tools

Filling of batteries after replacing the bladder

Periodic inspection of batteries before charging them

Inspection of pre-charging of batteries during the installation phase

Changing battery pre-charge status

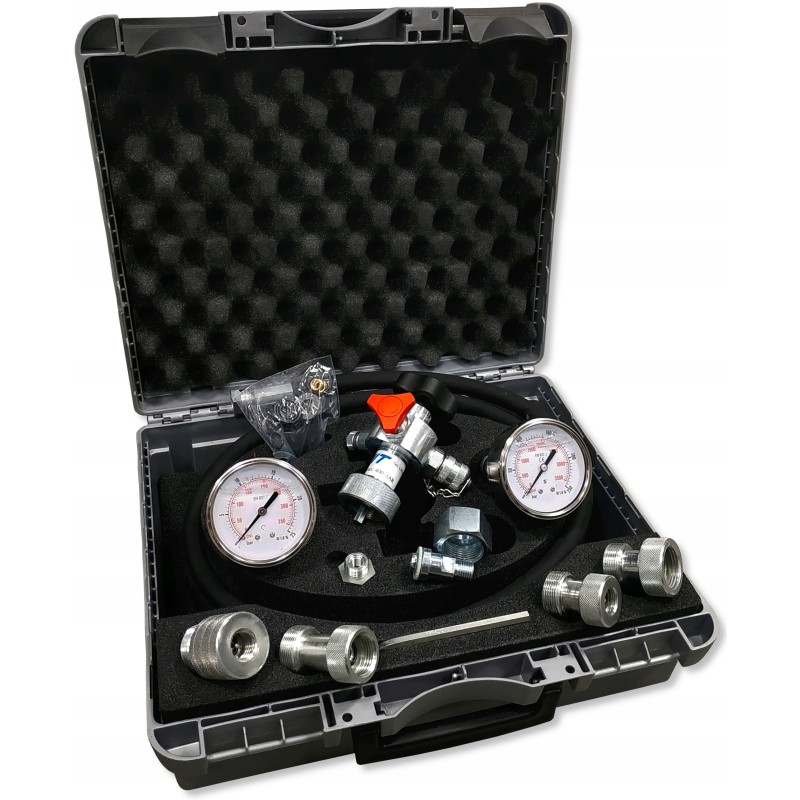

The complete control and filling device includes: protective plastic case

control and filling device filling hose approx. 2 m with G1/4' - G1/4'

adapter for nitrogen cylinder W24.32x1.814

M28x1.5 - M16x2

M28x1.5 - 7/8“ 14UNF

M28x1.5 - G3/4'

M28x1.5 - 5/8“ 18UNF

5/8' 18UNF - 5/16 (8V1) Schrader valve

6mm Allen key

pressure gauge 63mm 0-25 Bar

pressure gauge 63mm 0-250 Bar

The device fits 5/8", 7/8", VG 8 connections and all tanks with an M28x1.5 filling connection.

Use: Before checking whether the gas pressure is changed, empty the tank.

Each set comes with an instruction manual incl. in English.

Checking and reducing the gas pressure: In this case, it is not necessary to connect a hose.

The device is equipped with a non-return valve that prevents gas from flowing through the hose connection.

Increasing the gas pressure: When we want to increase the pressure, we must have a sufficient amount of nitrogen cylinders with appropriate pressure.

If we do not have them, we can use a nitrogen charger to obtain the desired higher pressure.

Applicable safety regulations must be strictly observed.

The nitrogen used should have a purity level of 99.8%, commonly available nitrogen meets this condition.

Technical Specifications: Outer width of the suitcase: 340 mm

Height of the suitcase: 295 mm

Thickness of the suitcase: 130 mm

Weight: 3.9 kg

The price applies only to the gas control and filling device in the suitcase shown in the first photo.
