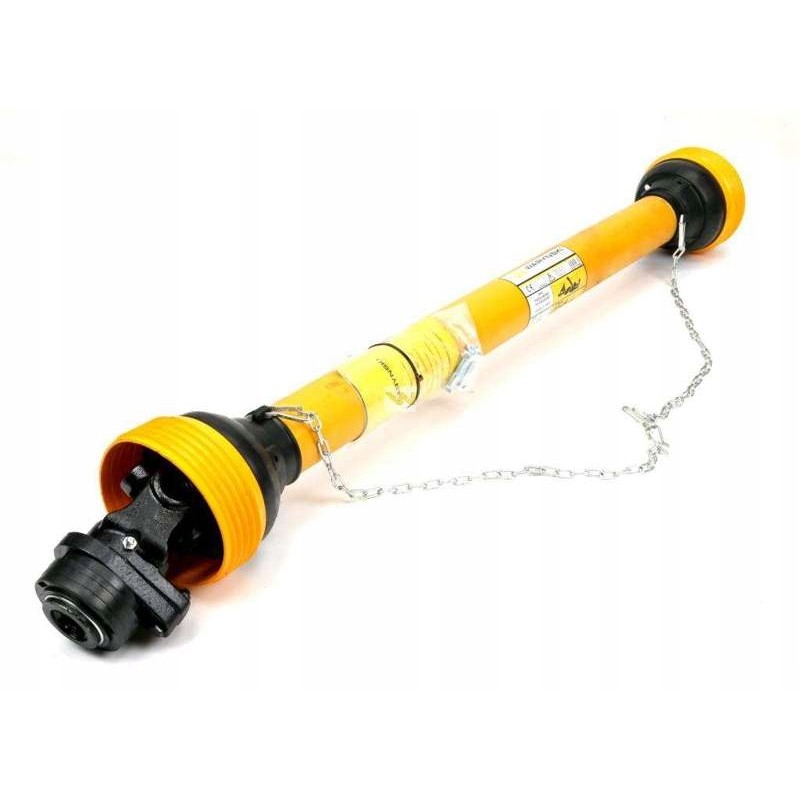

PTO shaft 860 1250mm 460nm 900nm series 3r warynski

PTO shaft 860-1250mm 460Nm clutch with pin 900Nm CE 2020 series 3R WARYŃSKI Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Interchangeable indexes:

PTO shaft 860-1250mm 460Nm clutch with pin 900Nm CE 3R series WARYŃSKI

Producer: Waryński Original

Product code: W3B171860K

Maximum length: 1250 mm

Minimum length: 860 mm

Inner tube thickness: 36 mm / 4.5 mm

Outer tube thickness: 43.5 mm / 3.4 mm

Clutch breaking power: 900Nm

Clutch: with pin

Nominal power: 460 Nm

Mounting to the machine: 1 3/8' Z6.

Mounting to the tractor: 1 3/8' Z6.

Type of telescopic connector: Pipe triangular.

Works with: External fork - WR227301, Cross fork - WR219301, Internal pipe fork. - WR219307, Outer pipe fork - WR219306, Inner pipe - WR2323705, Outer pipe - WR2322735, Housing - WR21931129

Height of the cross: 74.6 mm

Bearing diameter: 27 mm< p>
