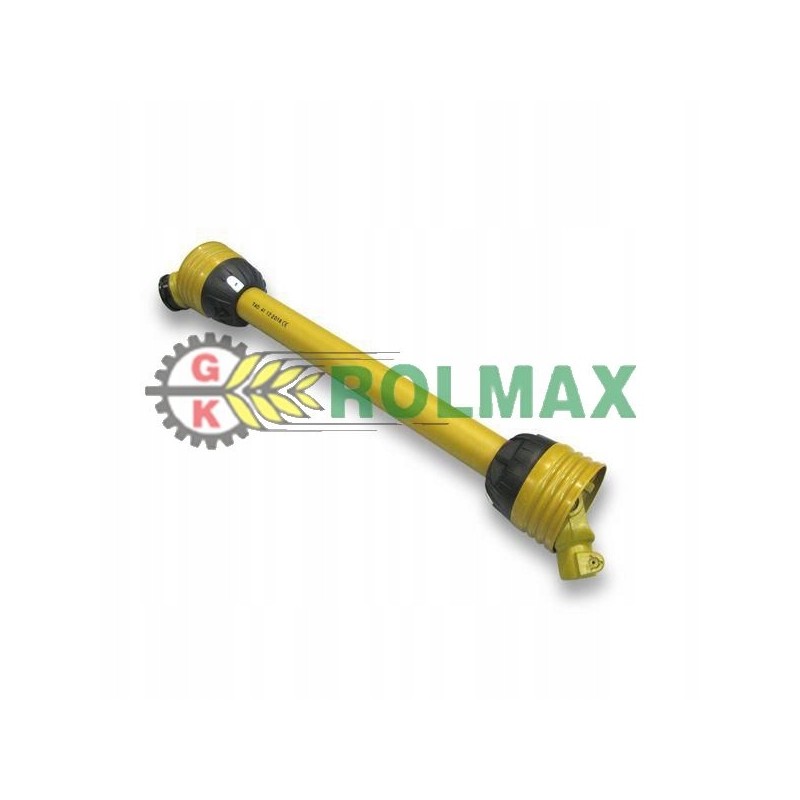

Wal comer t80 series 1240 nm l 1410 mm 1 3 4 z20 x2

Shaft Comer series T80 1240 Nm L-1410 mm 1 3/4 Z20 x2 Comer T801410ENC15C15

Part number T801410ENC15C15 Unit piece Application - Soil cultivation machines

- Wood chippers

- Rudder

Features - Lubrication interval: 8 hours

- CE marked

Technical information - Follow the Comer operating instructions

- Max. dynamic capacity 540 rpm: 79kW 1240Nm

- Max. dynamic capacity 1000 rpm: 110kW 1050Nm

- Values at a deflection angle of 5° and a service life of 1000 hours

Outer diameter of the connection on the tractor side 1-3/4inch Number of connection grooves on the tractor side 20 Type of connection on the tractor side Retaining ring Outer diameter of the connection on the machine side 1-3/4inch Number of connection grooves on the machine side 20 Type of connection on the machine side Retaining ring Shaft size T80 Length 1410mm Diameter of the cross sleeve on the tractor side 35mm Length of the cross on the tractor side 1065mm Diameter of the cross sleeve on the machine side 35mm Length of the cross on the machine side 1065mm Static torque max. 1240N·m
