Flexible right finger z56958 john deere warynski

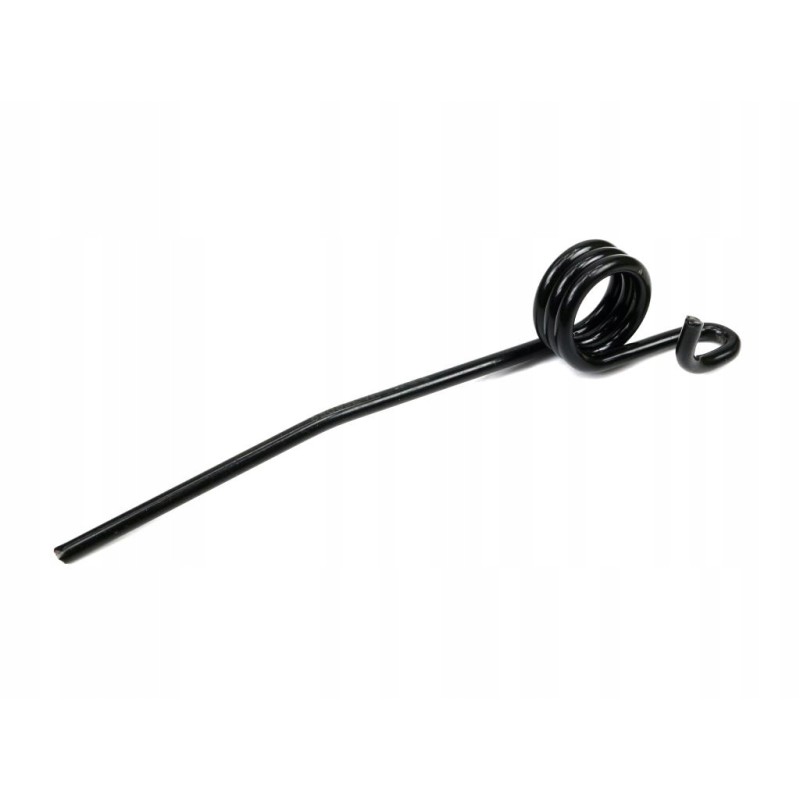

Right motor fork spring finger Z56958 John Deere WARYŃSKI W-Z56958, H149753 Right motor fork spring finger Z56958 John Deere WARYŃSKI W-Z56958, H149753

Dimensions:

*Thickness: 5.5 mm, < p>

*Length: 215 mm,

*Fixing length: 35 mm,

*Width: 37 mm,

*Inner diameter of the coil : 29 mm,

Designed in a 3D program, including stress simulation using the finite element method. Repeatability is ensured by quality control built into the manufacturing process. Made of heat-treated spring steel, which is also used in the production of springs and spiral, disc and ring springs for motor vehicles under the highest loads. Their properties allow for optimal flow of the transported mass. Powder coated ensures increased resistance to corrosion and abrasion

* Application: John Deere

* Product code: W-Z56958

-️ Reference number: Z56958, 525Z56958, Z56958, H149753, 3045Z56958, Z56958Z, Z56958N

* Dimensions in the diagram are given in mm

* Buy once and do it right!

* Producer: Waryński Original< p>
