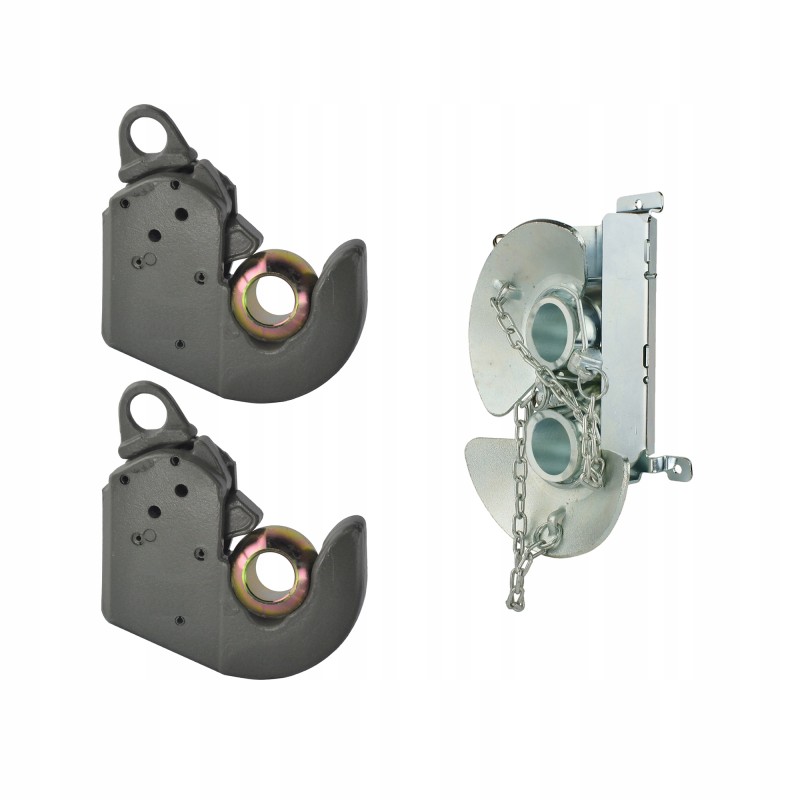

Hooks kat2w magazine bullets zk 56x37 hydrolider

KIT FOR THE PRODUCTION OF LOWER TRANDS: TWO REINFORCED WELDING HOOKS CATEGORY 2

TWO BALLS 56x28 WITHOUT FLANGE

TWO BALLS 56X37 WITH A GUIDE COLLAR

MAGAZINE FOR STORING BALLS

Production:

Original product of the Hydrolider brand, symbol: 2.00.00.037

Application:

Weldable hooks, used in the production of various types of lower links or side. Preferred for the production of medium tie rods with a second category fastening system, used in URSUS C-385, ZETOR 1224 tractors and other derivatives with a power of up to 90 HP.

The magazine allows you to keep the balls in a safe and designated place on the tractor, machine or wall in a garage or machinery park.

Balls with a guide collar allow you to quickly connect and disconnect machines from the tractor. The collars make it easier for the driver to connect the machine by guiding the hooks to the balls. Used in the hook mounting system for the CBM lower link of category 2/3.

Installation:

Example photo of the mounted magazine at the rear of the tractor on the inner part of the fender:

REINFORCED CATEGORY II HOOKS:

Fits balls with an outer diameter: 56mm

Factory equipped with balls without collar

Ball pin hole diameter: 28mm

Ball material: galvanized steel

Hook material: pre-painted cast iron

MAGAZINE:

Bracket material: 2mm thick galvanized sheet metal

Total height: 173mm

Total width: 82mm

Total thickness: 59mm

Maximum number of balls stored: 2 pieces

Maximum diameter of stored balls: 56mm

BALLS WITH COLLAR:

Material: SAE 1020 (hardened steel)

Guiding collar: YES

Inner diameter: 37mm

Outer diameter: 56mm

Pin diameter: 11mm
