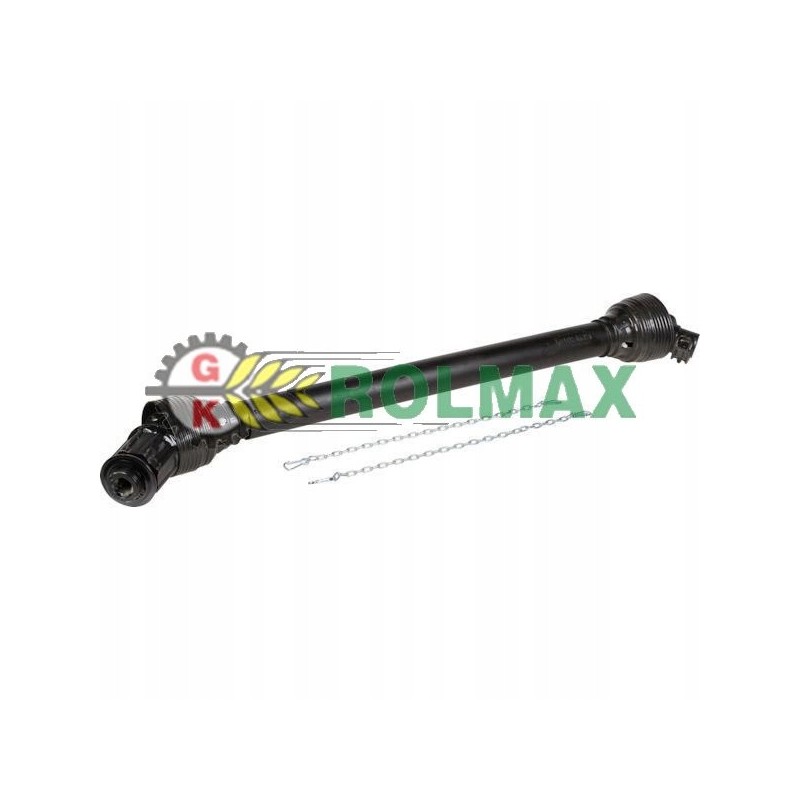

Wal pto 20 ratchet clutch 900nm l 860 mm pto

PTO shaft 20 ratchet clutch - 900Nm L-860 mm PTO20T860M34

Part number PTO20T860M34GP Unit piece Benefits - Cheap alternative in the low power range Features - Meets all international safety requirements Technical information PTO20

- Max. dynamic capacity 540 rpm: 15kW

- Max. dynamic capacity 1000 rpm: 23kW

PTO40

- Max. dynamic capacity 540 rpm ./min: 26kW

- Max. dynamic capacity 1000rpm: 40kW

PTO50

- Max. dynamic capacity 540rpm: 35kW< p>

- Max. dynamic capacity 1000rpm: 54kW

PTO60

- Max. dynamic capacity 540rpm: 47kW

- Max. dynamic capacity 1000 rpm:74kW

Outer diameter of the connection on the tractor side 1-3/8 inch Number of grooves in the connection on the tractor side 6 Type of connection on the tractor side Pin Outer diameter of the connection on the machine side 1-3/8 inch Number of machine-side connection grooves 6 Machine-side connection type Retaining ring Machine-side accessories Ratchet clutch PTO shaft size 20 Length 860mm Clutch torque max. 900N·m
