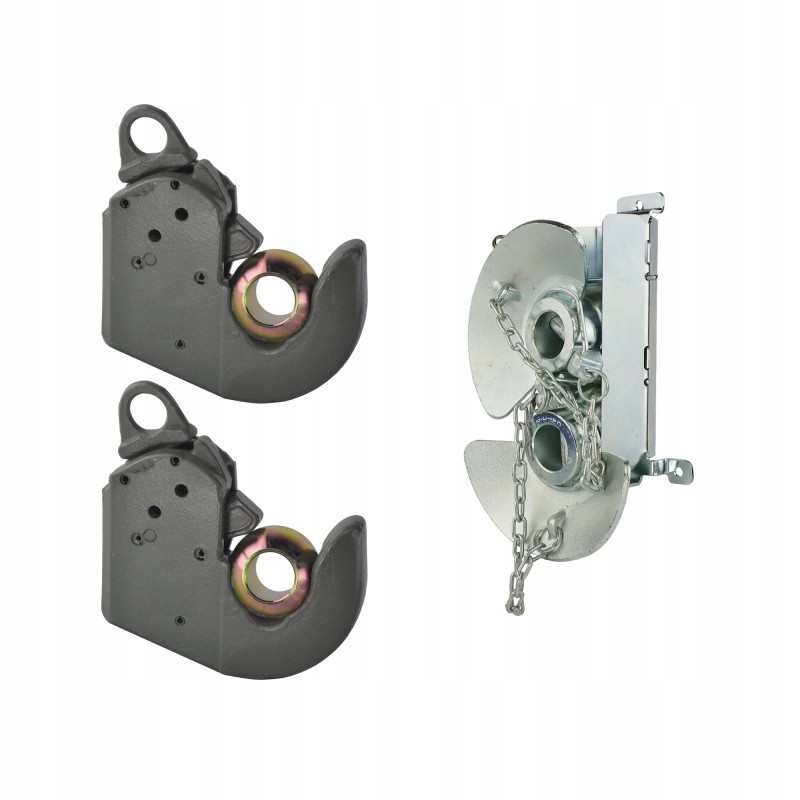

Cat3 hooks, magazine, ZK 64x28 hydrolider bullets

KIT FOR THE PRODUCTION OF LOWER TRANDS: TWO WELDING HOOKS CATEGORY 3

TWO BALLS 64x28 WITHOUT FLANGE

TWO BALLS 64X28 WITH A GUIDE COLLAR

MAGAZINE FOR STORING BALLS

Production:

Original product of the Hydrolider brand, symbol: 2.00.00.040

Application:

Weldable hooks, used in the production of various types of lower or side. Preferred for the production of medium tie rods with a second category mounting system, used in URSUS C-385, ZETOR 1224 tractors and other derivatives with a power of up to 120 HP.

The magazine allows you to keep the balls in a safe and designated place on the tractor, machine or wall in a garage or machinery park.

Balls with a guide collar allow you to quickly connect and disconnect machines from the tractor. The collars make it easier for the driver to connect the machine by guiding the hooks to the balls. Used in the hook mounting system for the CBM lower link, category 3/2.

Installation:

Example photo of the mounted magazine at the rear of the tractor on the inner part of the fender:

CATEGORY III HOOKS:

Fits balls with an outer diameter: 64mm

Factory equipped with balls without collar

Ball pin hole diameter: 28mm

Ball material: galvanized steel

Hook material: high-quality weldable steel

MAGAZINE:

Bracket material: 2mm thick galvanized sheet metal

Total height: 192mm

Total width: 91mm

Total thickness: 63mm

Maximum number of balls stored: 2 pieces

Maximum diameter of stored balls: 64mm

BALLS WITH COLLAR:

Category: 3/2

Material: SAE 1020 (hardened steel)

Guide collar: YES

Inner diameter: 28.7mm

Outer diameter: 64mm

Pin diameter: 12mm
