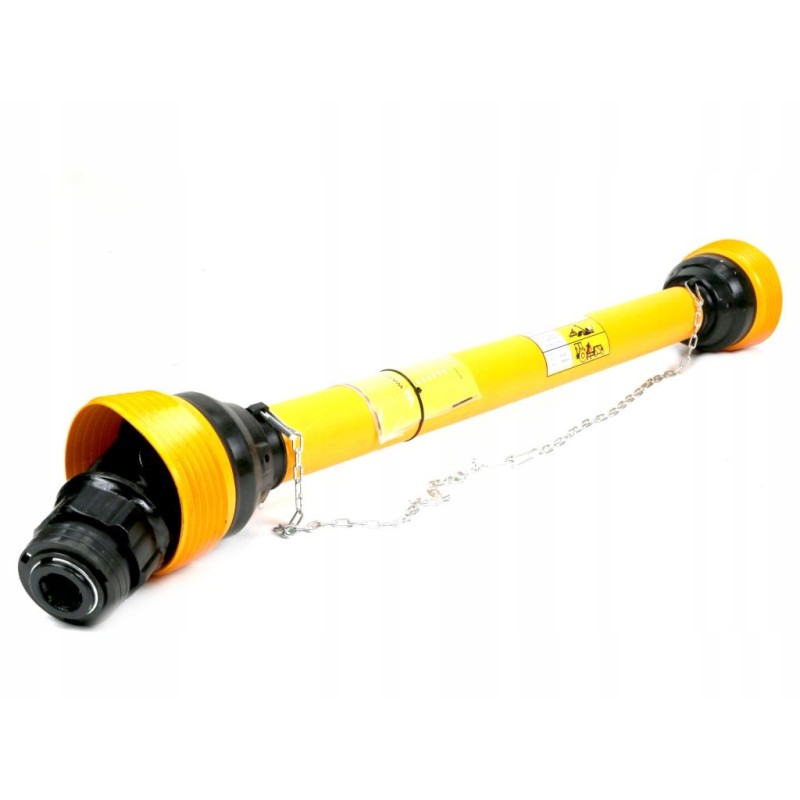

Articulated and telescopic shaft 1010 1500mm 620nm 5r

PTO shaft 1010-1500mm 620Nm one-way clutch 60270 CE 2020 5R series WARYŃSKI W5B1101010 PTO shaft 1010-1500mm 620Nm one-way clutch 60270 CE 2020 5R series WARYŃ SKI W5B1101010 Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

*Specification:

*Type of telescopic connector: Triangular pipe -

*Works with: External fork -WR227501, WR215520, Cross connector - WR219501, Internal pipe fork . - WR219507, Outer pipe fork - WR219506, Inner pipe - WR2343855, Outer pipe - WR2342885, Housing - WR21951129, -

*Inner pipe wall thickness: 3.8 mm

* Outer tube wall thickness: 3 mm

*Clutch breaking torque: None -

*Clutch: One-way clutch -

*Maximum length: 1500 mm

*Minimum length: 1010 mm

*Inner tube thickness: 45 mm

*Outer tube thickness: 51.5 mm]

*Power nominal: 35 47 KW HP

*Mounting to the machine: 1 3/8' Z6' inch

*Mounting to the tractor: 1 3/8' Z6' inch

* Torque: 620 Nm

* Working angle: Max 17° -

* Bearing diameter: 30.2 mm

* Cross height: 79.4 mm

*Producer: Waryński Original
