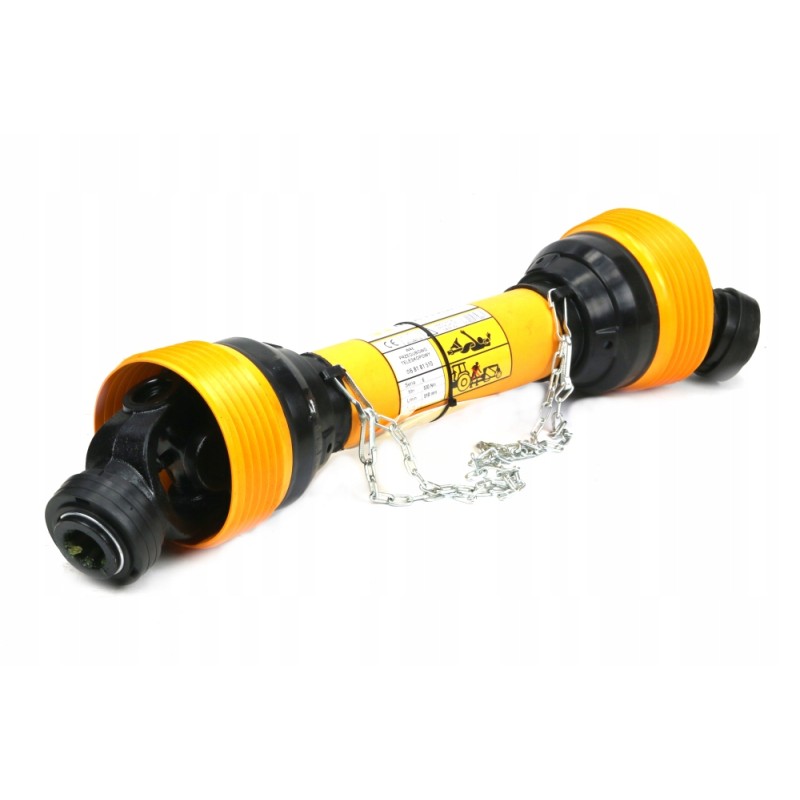

PTO shaft 560 830mm 830nm CE Warynski

PTO shaft 560-830mm 830N CE 2020 series 6R WARYŃSKI W6B1B1560 PTO shaft 560-830mm 830N CE 2020 series 6R WARYŃSKI W6B1B1560 Shaft made according to the new PN-EN-12965_2020 standard . Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

*Specification:

*Type of telescopic connector: Triangular pipe -

*Works with: External fork - WR227601, Cross connector - WR219601, Internal pipe fork. - WR219607, Widłak pipe external - WR219606, Internal pipe - WR2363405, WR2140600, Outdoor pipe - WR2362435, WR2141600, housing - WR22961129, -

* *Tripe of the wall pipe wall: 5.5 mm

*Outer tube wall thickness: 4 mm

*Clutch opening torque: None -

*Clutch: None -

*Maximum length: 830 mm

*Minimum length: 560 mm

*Inner tube thickness: 45 mm

*Outer tube thickness: 54 mm

*Power nominal: 47 ( 64 ) KW (HP)

*Mounting to the machine: 1 3/8' Z6' inch

*Mounting to the tractor: 1 3/8' Z6' inch

*Torque: 830 Nm

*Working angle: Max 17° -

*Bearing diameter: 30.2 mm

*Height of the cross: 91.4 mm

-️Application:

Forage chopper Mower Tandem spreader Adapter for harvesting corn Bison Barrel wagon

*Producer: Waryński OriginalGaleria
