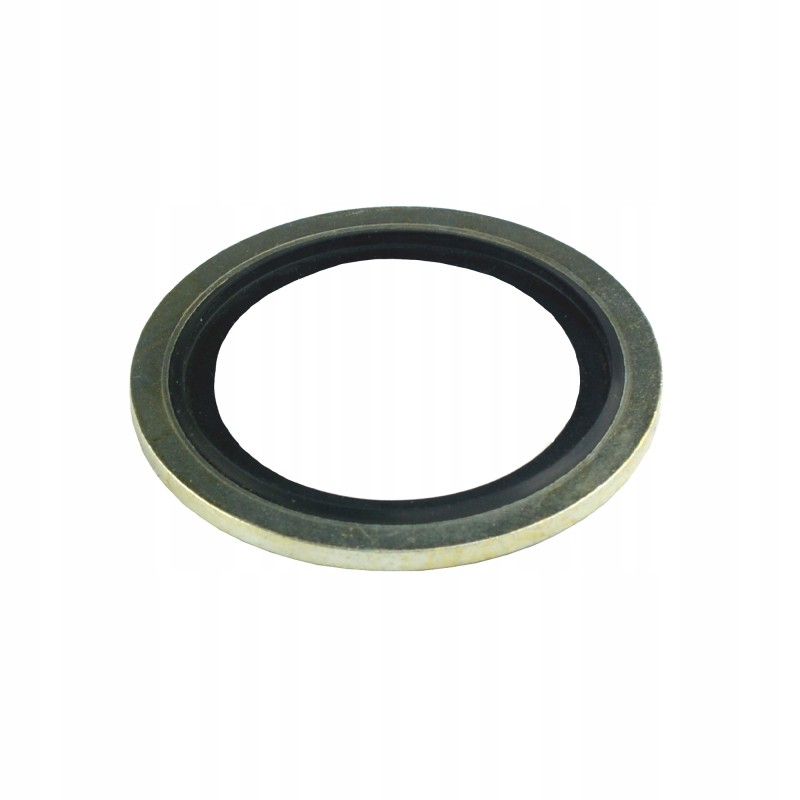

METAL-RUBBER GASKET 27.2x36x2 Production:
Original product of the Hydrolider brand, symbol: 1.63.00.027
Application:
It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
The washer perfectly seals hydraulic connections, usually installed between the body of the pump, actuator, hydraulic motor, etc. and the so-called hydraulic connection. nipple.
Technical data:
Washer recommended for connection with M27 thread
Fits external thread diameter in the range of 26.6 - 27 mm
Dimensions [mm]: dia. ext. 27.2, avg. outside: 36, thickness: 2
Material: steel and rubber
Liquid type: hydraulic oil
Example of application
The washer seals perfectly hydraulic connections, example application when connecting a connection with a ring body:
