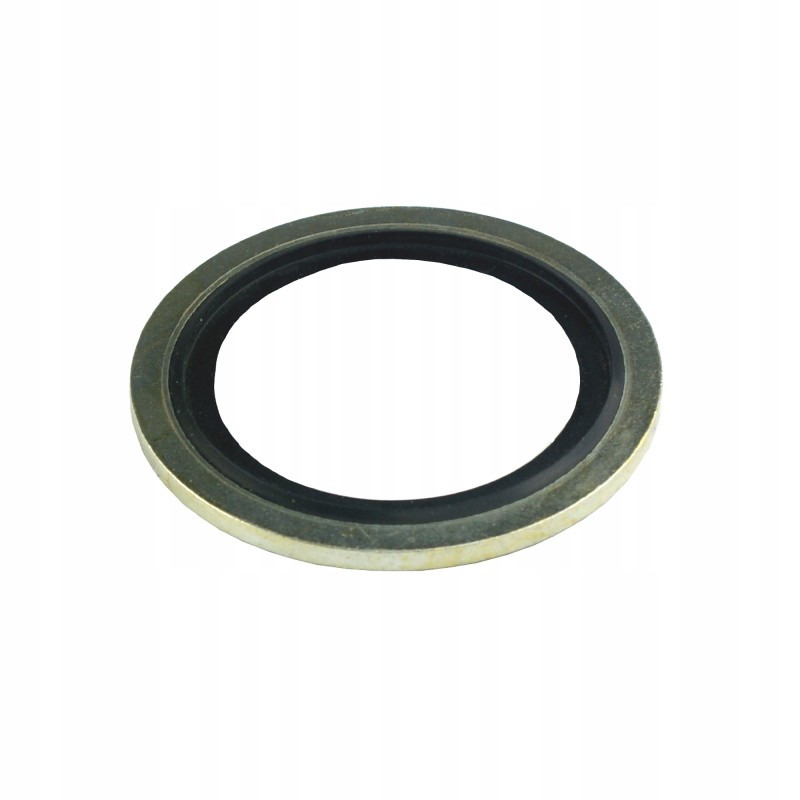

METAL-RUBBER GASKET 10.7x18x1.5 Production:
Original product of the Hydrolider brand, symbol: 1.63.00.010
Application:
It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
The washer perfectly seals hydraulic connections, usually installed between the body of the pump, actuator, hydraulic motor, etc. and the so-called hydraulic connection. nipple.
Technical data:
Washer recommended for connection with M10 thread
Fits external thread diameter in the range of 9.6 - 10mm
Dimensions [mm]: dia. ext. 10.7, avg. outside: 18, thickness: 1.5
Material: steel and rubber
Liquid type: hydraulic oil
Example application
Washer perfectly seals hydraulic connections, example use when connecting a connection with an eyelet body:
