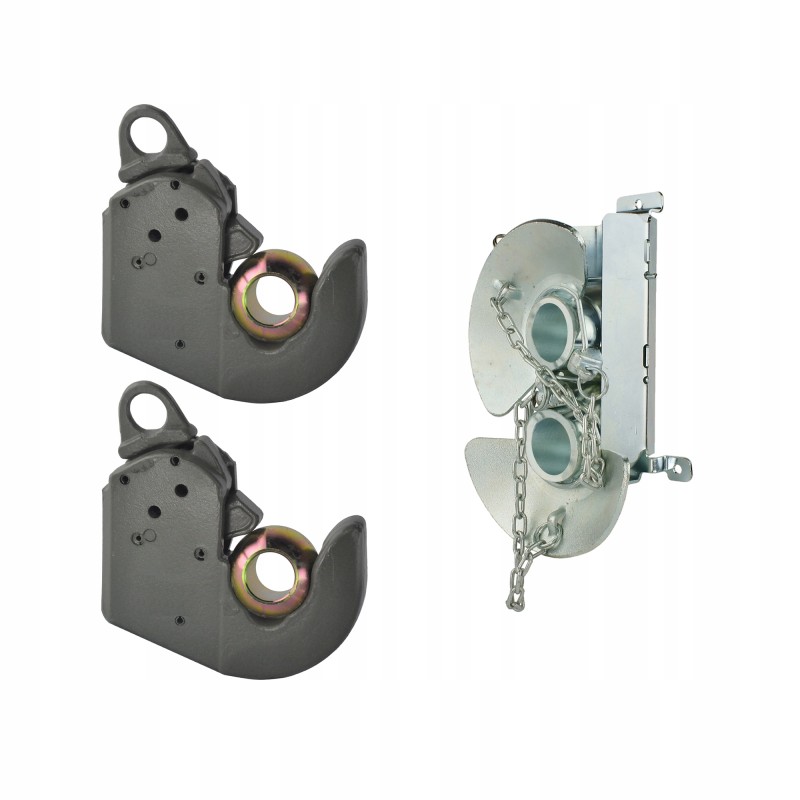

Cat3 hooks, magazine, ZK 64x37 hydrolider bullets

KIT FOR THE PRODUCTION OF LOWER TRANDS: TWO WELDING HOOKS CATEGORY 3

TWO BALLS 64x28 WITHOUT FLANGE

TWO BALLS 64X37 WITH A GUIDE COLLAR

MAGAZINE FOR STORING BALLS

Production:

Original product of the Hydrolider brand, symbol: 2.00.00.042

Application:

Weldable hooks, used in the production of various types of lower or side. Preferred for the production of medium tie rods with a second category mounting system, used in URSUS C-385, ZETOR 1224 tractors and other derivatives with a power of up to 140 HP.

The magazine allows you to keep the balls in a safe and designated place on the tractor, machine or wall in the garage or machinery park.

Balls with a guide collar allow you to quickly attach and detach machines from the tractor. The collars make it easier for the driver to connect the machine by guiding the hooks to the balls. Used in the mounting system of the mounting hook for the CBM lower link of category 3/3.

Installation:

Example photo of the mounted magazine at the rear of the tractor on the inner part of the fender:

CATEGORY III HOOKS:

Fits balls with an outer diameter: 64mm

Factory equipped with balls without collar

Ball hole diameter for pin: 28mm

Ball material: galvanized steel

Hook material: pre-painted cast iron

MAGAZINE:

Bracket material: 2mm thick galvanized sheet metal

Total height: 192mm

Total width: 91mm

Total thickness: 63mm

Maximum number of stored balls: 2 pieces

Maximum diameter of stored balls: 64mm

BALLS WITH COLLAR:

Category: 3/3

Material: SAE 1020 (hardened steel)

Guidance collar: YES

Inner diameter: 37mm

Outer diameter: 64mm

Pin diameter: 12mm
