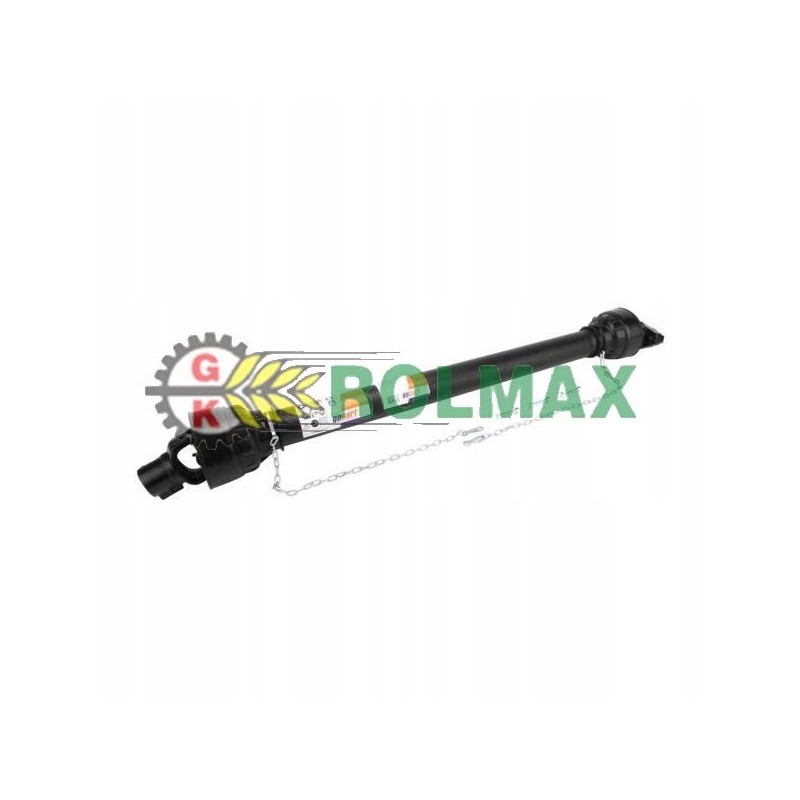

Pto shaft 40 460 nm, shear pin coupling l 860 mm

PTO shaft 40 460 Nm clutch-shear pin L-860 mm PTO40T860SB

Part number PTO40T860SBGP Unit piece Benefits - Cheap alternative in the low power range Features - Meets all international safety requirements Technical information PTO40

- Max. dynamic capacity 540rpm: 26kW 460Nm

- Max. dynamic capacity 1000rpm: 40kW 380Nm

PTO50

- Max . dynamic capacity 540 rpm: 35kW 620Nm

- Max. dynamic capacity 1000 rpm: 54kW 515Nm

PTO60

- Max. dynamic capacity 540 rpm ./min: 47kW 830Nm

- Max. dynamic capacity 1000rpm:74kW 710Nm

Clutch type shear pin clutch Outer diameter of the connection on the tractor side 1-3/8inch Number of connection grooves on the tractor side 6 Outer diameter of the connection on the machine side 1-3/8 inch Number of connection grooves on the machine side 6 PTO shaft size 40 Length 860mm Power at 540 rpm 26kW Power at 1000 rpm 40kW Cross sleeve diameter tractor side 27mm Length of the cross on the tractor side 746mm Diameter of the cross bush on the machine side 27mm Length of the cross on the machine side 746mm Static torque max. 170N·m
