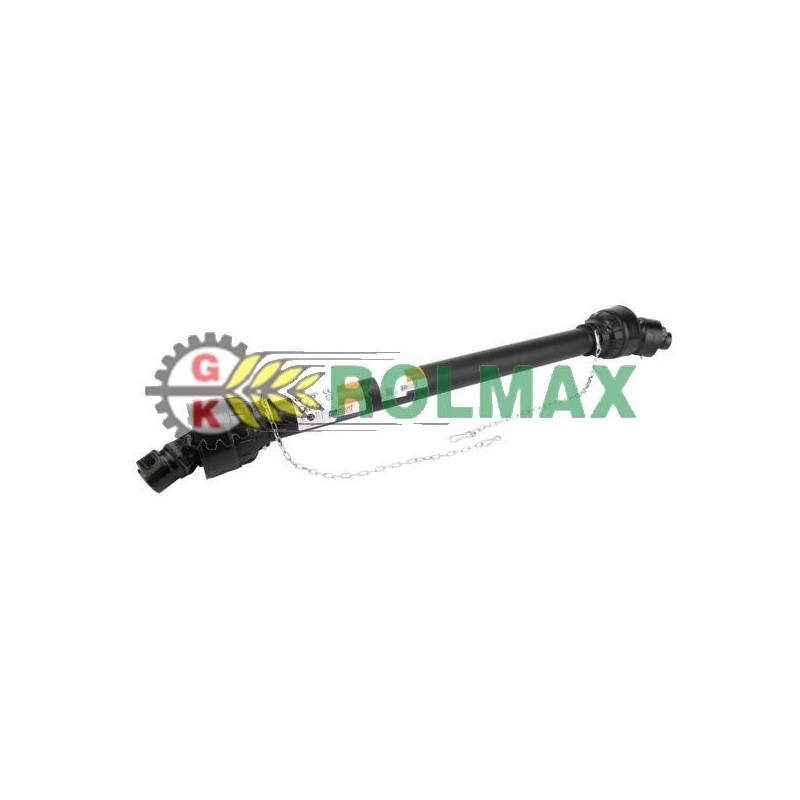

Wal pto 40 460 nm with single-way clutch l 101

PTO shaft 40,460 Nm with 1-way clutch L-1010 mm PTO40T1010ORC

Part number PTO40T1010ORCGP Unit piece Benefits - Low-cost alternative in the low power range Features - Meets all international safety requirements Technical information PTO40

- Max. dynamic capacity 540rpm: 26kW 460Nm

- Max. dynamic capacity 1000rpm: 40kW 380Nm

PTO50

- Max. dynamic capacity 540rpm: 35kW 620Nm

- Max. dynamic capacity 1000rpm: 54kW 515Nm

PTO60

- Max. dynamic capacity 540rpm: 47kW 830Nm

- Max. dynamic capacity 1000rpm: 74kW 710Nm

Clutch type one-way clutch Outer diameter of the connection on the tractor side 1-3/8inch Number connection grooves on the tractor side 6 Outer diameter of the connection on the machine side 1-3/8 inch Number of connection grooves on the machine side 6 Accessories on the machine side Overrun clutch PTO shaft size 40 Length 1010mm Power at 540 rpm 26kW Power at 1000 rpm 40kW Diameter of the cross sleeve on the tractor side 27mm Length of the cross on the tractor side 746mm Diameter of the cross sleeve on the machine side 27mm Length of the cross on the machine side 746mm
