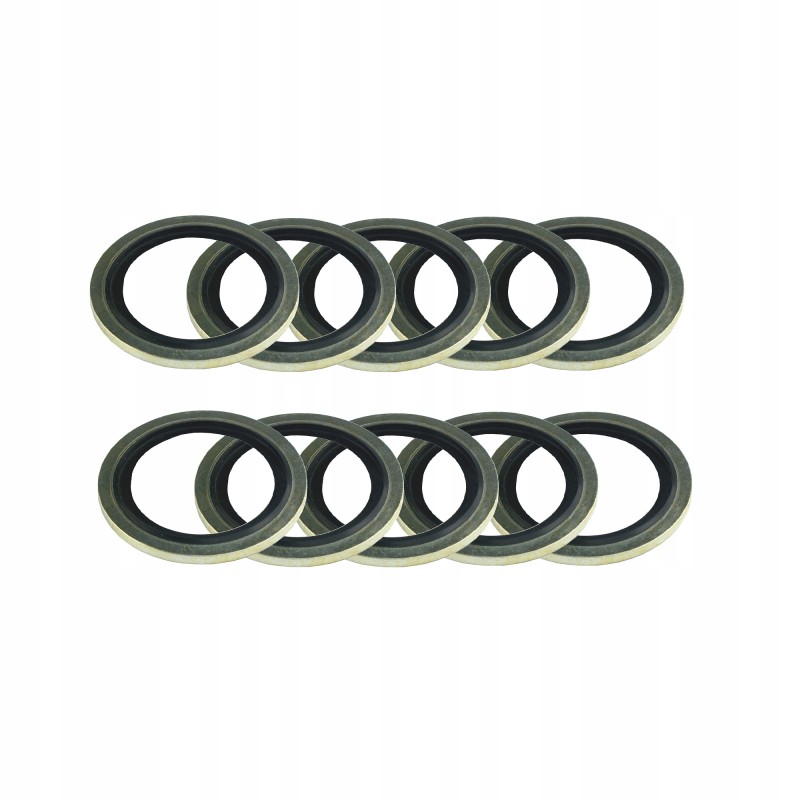

Metal rubber seal 17 3x23 3 8 10 pcs hydrolider

SET OF 10 METAL-RUBBER GASKETS SIZE 17.3x23 3/8' Production:

Original product of the Hydrolider brand, symbol: 1.63.00.117

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and the broadly understood industry.

The washer perfectly seals hydraulic connections, usually installed between the pump body, actuator, hydraulic motor, etc. and the so-called hydraulic connection. nipple.

Technical data:

Washer recommended for connection with BSP 3/8' thread

Fits external thread diameter in the range of 16.3 - 16, 6 mm

Dimensions [mm]: dia. ext. 17.3, wed. outside: 23, thickness: 1.5

Material: steel and rubber

Liquid type: hydraulic oil

Example application

Washer perfectly seals hydraulic connections, example use when connecting a connection with an eyelet body:
