5x straight ferrule oring 1 2 with hose sleeve 1 2

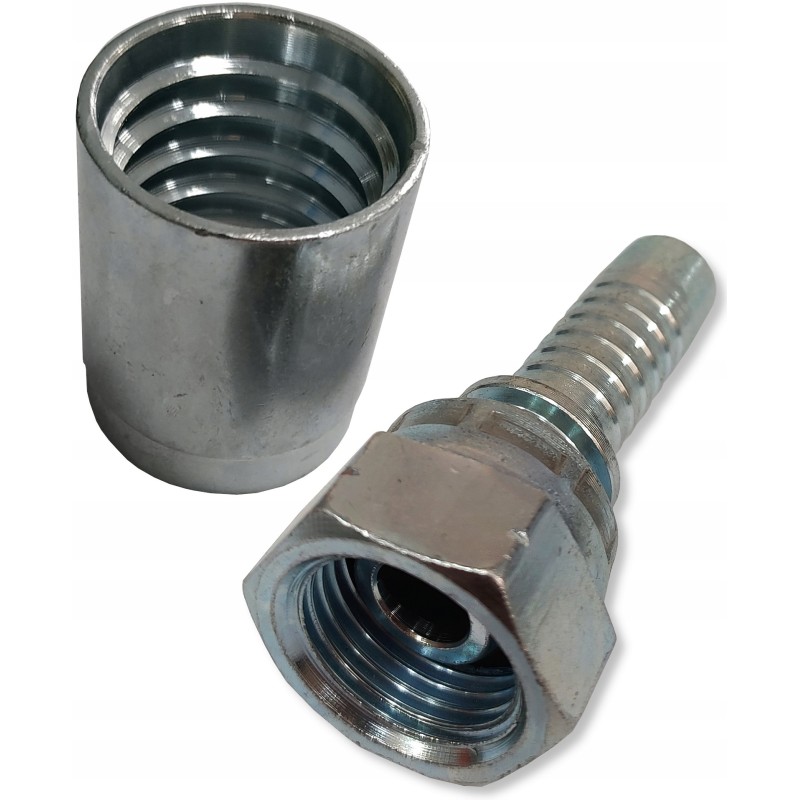

Set of 5x Straight Hydraulic Ferrule with a sealing ring G1/2' Including a sleeve for DN13 Hose - 1/2'' SKRAW-MET CODE: [8241]The set includes: 5x Straight Ferrule G1/2' - [1529]

5x Hose sleeve - [1537]

Used for crimping flexible hydraulic hoses to enable connection of hoses with other elements.

The basic element of hose production - is done by crimping the hose with a clamping sleeve using a hydraulic press or crimping machine.

The sealing of the connectors is ensured by an internal cone 60° with an O-ring.

At each stage of production, precision and quality supported by detailed measurements.

The most modern CAD/CAM and ERP/MRP software solutions enabling the production of details for the most demanding applications.

Clip symbol: DKR C12 10 G1/2 Technical Specification: Hose sizes: DN13 - G1/2'

Nut thread: G1/2'

B (mm): 24

L (mm): 30

Material: Free-cutting carbon steel with zinc coating - Corrosion resistant
