Hydrolider 7-pin trailer socket tester

7-PIN SOCKET TESTER FOR TRAILERS SET WITH ADAPTER SOCKETS 13/7 and 7/13 Production:

Original product of the Hydrolider brand, symbol: 1.36.28.205.1

Application:

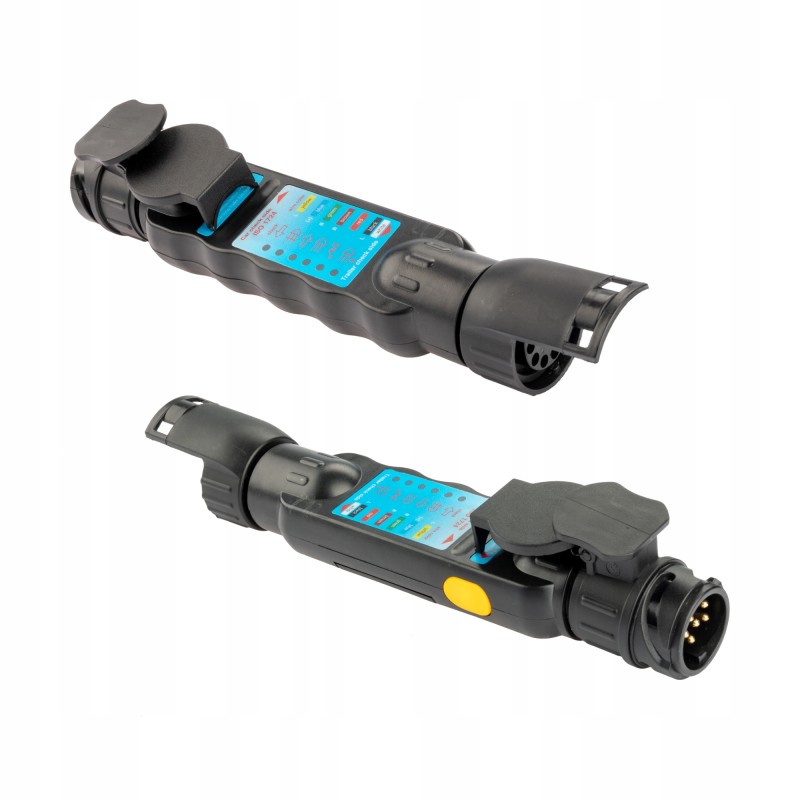

Electronic tester of 7-pin sockets in trailers, agricultural and construction vehicles transport. The wireless device allows you to easily identify electrical problems and improper functioning of lighting in the trailer.

The set includes 13/7 and 7/13 adapters that allow you to connect the tester to 13-pin plugs and sockets.

To check the proper operation of the harness, remove the plug from the socket and connect the tester to this place.

Correct diagnosis is performed by pressing the main test button.

If any of the LEDs on the tester panel do not light up, it means that the cable or pin is damaged.

Technical data:

Power supply: 9V battery 6F22 (not included)

Housing: damage-resistant PVC

Dimensions: length 196mm x width 55mm

Number of test diodes: 6

Standard of tested connections: DIN 1724

Reading instructions:

Stop light - red

Left turn signal - yellow

Rear fog light or 12V - blue

Left rear light - black

Grounding - white

Right turn signal - green

Right rear light - brown
